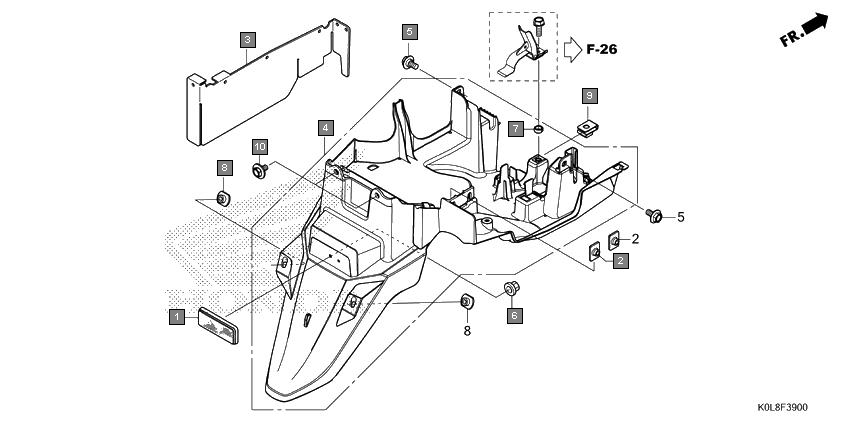

Scooters Activa125 SCV125L Frame Rear fender
Ref.No. Part No. Description Oty
1 33741KPL902 REFLECTOR, REFLEX 1
2 61304MGSD70 NUT, SPECIAL, 5MM 2
3 80104K0LD00 PLATE, RR. FENDER SPLASH GUARD 1
4 80105K0LD00 FENDER COMP., RR. 1
5 90111KWP900 BOLT, INNER COVER 2
6 90301KWN901 NUT, U, 5MM 1
7 90311K0LD00 COLLAR, 6MM 1
8 90311KTE910 NUT, RR. FENDER 2
9 90653K0LD00 NUT, CLIP, 6MM 1
10 934040601208 BOLT-WASHER, 6X12 2
