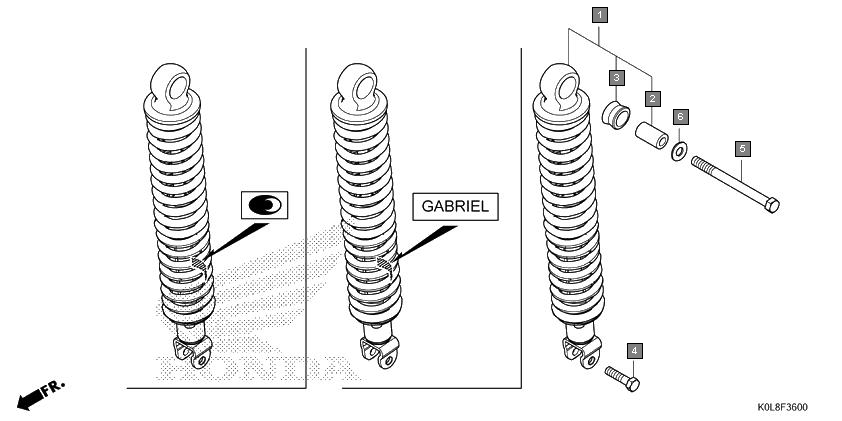

Scooters Activa125 SCV125L Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400K0LD02 CUSHION ASSY., RR.(ENDURANCE) 1
2 52400K0LD03 CUSHION ASSY., RR.(GABRIEL) 1
3 52487KWS901 COLLAR, RUBBER BUSH(GABRIEL) 1
4 52486K23902 COLLAR, RUBBER BUSH(ENDURANCE) 1
5 52489KWS901 BUSH, RUBBER(GABRIEL) 1
6 52495K23902 BUSH, RUBBER(ENDURANCE) 1
7 92201080320A BOLT, HEX., 8X32 1
8 92201101150H BOLT, HEX., 10X115 1
9 9410110000 WASHER, PLAIN, 10MM 1
