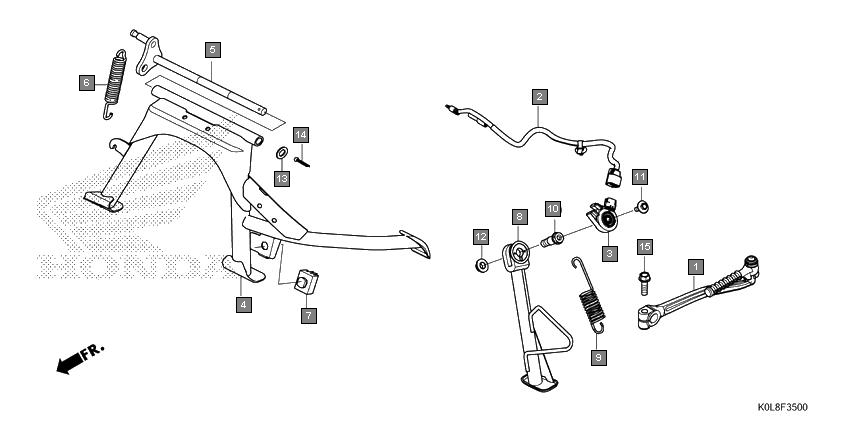

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28300K0LD00 | ARM ASSY., KICK STARTER | 1 |
2 | 32106K0LD00 | SUB HARNESS, SIDE STAND | 1 |
3 | 35700K0JN01 | SWITCH ASSY., SIDE STAND | 1 |
4 | 50500K0LD00 | STAND COMP., MAIN | 1 |
5 | 50503K0LD00 | SHAFT, MAIN STAND | 1 |
6 | 50504K0LD00 | SPRING, MAIN STAND | 1 |
7 | 50505GR1000 | RUBBER, STAND STOPPER | 1 |
8 | 50530K0LD00 | BAR COMP., SIDE STAND | 1 |
9 | 50541K0LD00 | SPRING, SIDE STAND | 1 |
10 | 90108KZL860 | BOLT, SIDE STAND PIVOT | 1 |
11 | 90132KYJ960 | BOLT, SPECIAL, 6X16 | 1 |
12 | 90304K0LD10 | NUT, SIDE STAND | 1 |
13 | 9410210000 | WASHER, PLAIN, 10MM | 1 |
14 | 9420125180 | PIN, SPLIT, 2.5X18 | 1 |
15 | 957010802507 | BOLT, FLANGE, 8X25 | 1 |
