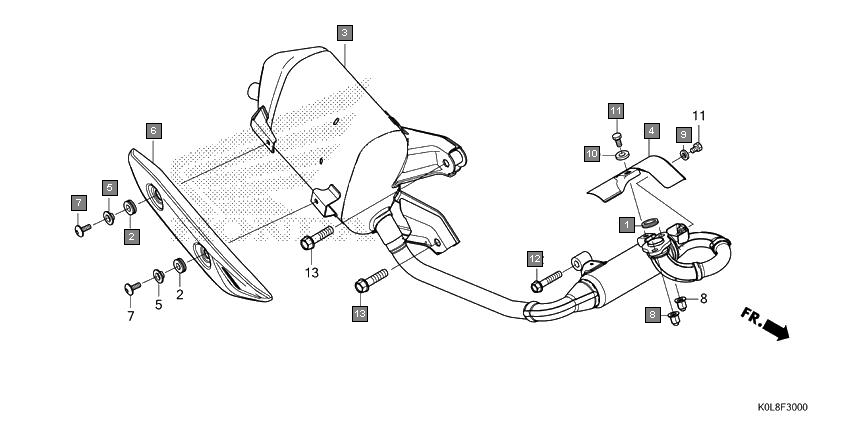

Scooters Activa125 SCV125L Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18293K0LD00 RUBBER, PROTECTOR PACKING 2
3 18300K0LD00 MUFFLER COMP., EX. 1
4 18301K0LD00 GUARD, HEAT 1
5 18314K0LD00 COLLAR, MUFFLER PROTECTOR 2
6 18318K0LD00 PROTECTOR, MUFFLER 1
7 90107K0LD00 BOLT, SPECIAL, 6X16 2
8 90304MJ0920 NUT, CAP, 7MM 2
9 90501K0LD00 WASHER, PLAIN, 6X13 1
10 90502K0LD00 WASHER, PLAIN, 6X18 1
11 93301060100B BOLT, HEX., 6X10 2
12 957010804007 BOLT, FLANGE, 8X40 1
13 958011004007 BOLT, FLANGE, 10X40 2
