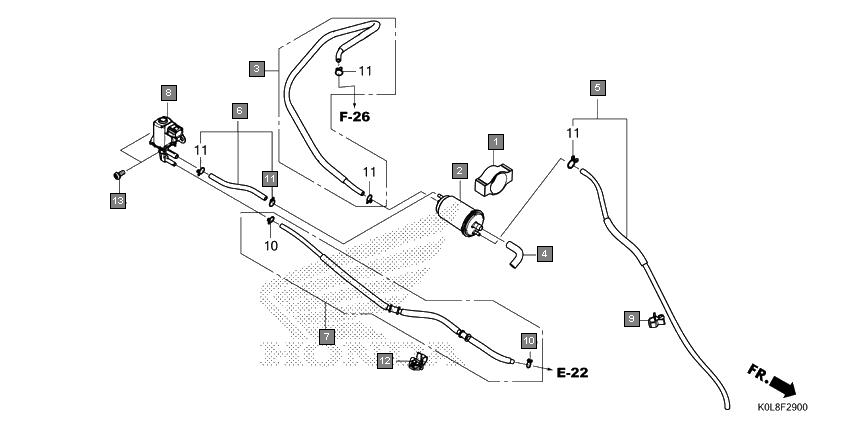

Scooters Activa125 SCV125L Frame Canister
Ref.No. Part No. Description Oty
1 17311K0LD00 RUBBER, CANISTER MOUNTING 1
2 17410K0LD01 CANISTER COMP. 1
3 17411K0LD00 TUBE ASSY., CHARGE 1
4 17412K0LD00 TUBE, AIR 1
5 17413K0LD00 TUBE COMP., DRAIN 1
6 17414K0LD00 TUBE ASSY. A, PURGE 1
7 17415K0LD00 TUBE ASSY. B, PURGE 1
8 36162K0LD01 VALVE, PURGE CONTROL SOLENOID 1
9 77243K0LD01 CLIP A, SEAT LOCK CABLE 1
10 90651KWPF00 CLIP, TUBE(B7) 2
11 90652KWPF00 CLIP, TUBE(B8) 5
12 91540TAA003 CLIP, HARNESS BAND(BLACK) (159MM) 1
13 93500050100H SCREW, PAN, 5X10 2
