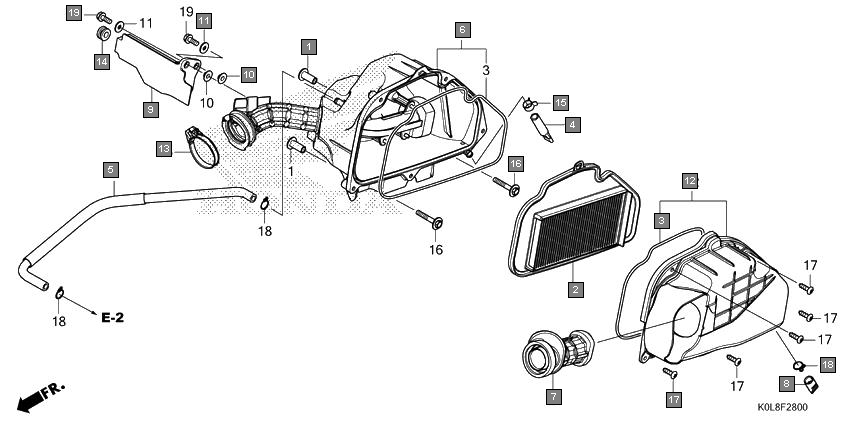

Scooters Activa125 SCV125L Frame Air cleaner
Ref.No. Part No. Description Oty
1 17208K0LD00 COLLAR, AIR CLEANER SETTING 2
2 17210K0LD00 ELEMENT, AIR CLEANER 1
3 17212K0LD00 SEAL, AIR CLEANER COVER 2
4 17216KVTG00 TUBE, DRAIN 1
5 17218K0LD00 TUBE, BREATHER 1
6 17225K0LD00 CASE SUB ASSY., AIR CLEANER 1
7 17232K0LD00 DUCT, AIR CLEANER 1
8 17234KCC941 TUBE, AIR CLEANER DRAIN 1
9 17236K0LD00 BRACKET, AIR CLEANER 1
10 17237K0LD00 COLLAR, BRACKET 2
11 17238K0LD00 WASHER, BRACKET(6MM) 2
12 17245K0LD00 COVER SUB ASSY., AIR CLEANER 1
13 17255K0LD00 BAND, AIR CLEANER CONNECTING TUBE(48) 1
14 83545KCJ690 RUBBER, SIDE COVER 1
15 90602KPL900 CLAMP, TUBE(D12.0) 1
16 90109K0LD00 BOLT-WASHER, 6X42 2
17 9390325480 SCREW, TAPPING, 5X20 5
18 9500202130 CLIP, TUBE(B12.5) 3
19 957010601600 BOLT, FLANGE, 6X16 2
