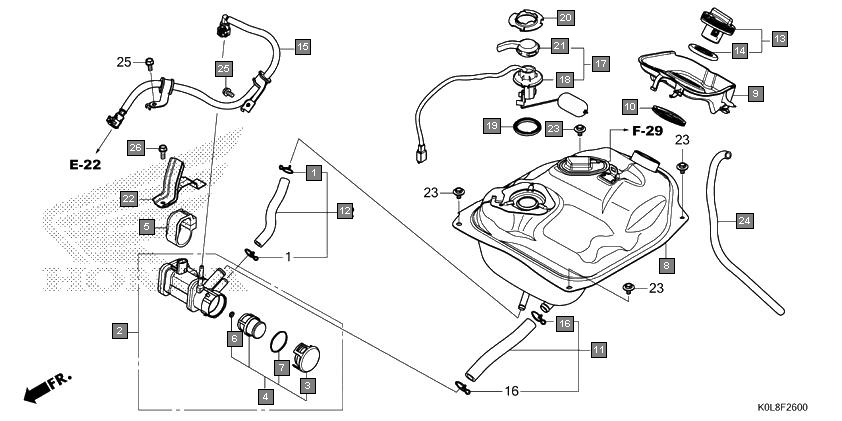

Scooters Activa125 SCV125L Frame Fuel tank/fuel pump
Ref.No. Part No. Description Oty
1 15771KV6000 CLIP, OIL DRAIN TUBE 2
2 16700K0LD01 PUMP UNIT ASSY., FUEL 1
3 16703K0LD01 CAP, FILTER 1
4 16707K0LD01 FILTER SET 1
5 16711K0LD00 RUBBER, FUEL PUMP 1
6 16715K0LD01 O-RING, FILTER 1
7 16717K0LD01 O-RING, FILTER CASE 1
8 17500K0LD00 TANK COMP., FUEL 1
9 17505K0LD00 TRAY, FUEL 1
10 17506K0LD00 RUBBER, FUEL SEAL 1
11 17541K0LD00 TUBE ASSY., FUEL FEED 1
12 17542K0LD00 TUBE ASSY., FUEL RETURN 1
13 17620K0LD00 CAP COMP., FUEL FILLER 1
14 17632383831 PACKING, FUEL FILLER CAP 1
15 17650K0LD01 HOSE COMP., FUEL FEED 1
16 17724K0LD00 CLIP, TUBE(B17.5) 2
17 37800K0LD01 FUEL UNIT 1
18 37800K0LD11 FUEL UNIT 1
19 37801GA7700 PACKING, BASE 1
20 37802GA7700 RETAINER, FUEL UNIT 1
21 37805KG8000 COVER, FUEL UNIT 1
22 83106K0LD00 BAND COMP., FUEL PUMP 1
23 934040601208 BOLT-WASHER, 6X12 4
24 950032305060 TUBE, VINYL, 8X12X500 (95003-23001-60M) 1
25 957010601200 BOLT, FLANGE, 6X12 2
26 957010601600 BOLT, FLANGE, 6X16 1
