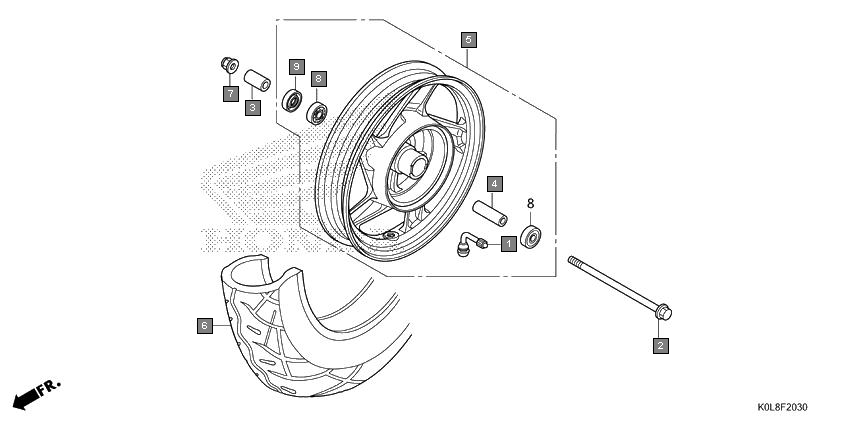

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 42753K24G01 | VALVE, RIM(ACCURA) | 1 |
| 2 | 42753KWPE01 | VALVE, RIM(TRITON) | 1 |
| 3 | 44301KTR700 | AXLE, FR. WHEEL | 1 |
| 4 | 44311KVT900 | COLLAR, FR. WHEEL SIDE | 1 |
| 5 | 44620KPL900 | COLLAR, FR. AXLE DISTANCE | 1 |
| 6 | 44650K24H20ZB | WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 7 | 44711K0LD01 | TIRE, FR.(MAXXIS) (90/90-12 54J) | 1 |
| 8 | 44711K74N01 | TIRE, FR.(CEAT)(90/90-12 54J) | 1 |
| 9 | 44711KVTD02 | TIRE, FR.(TVS)(90/90-12 54J) | 1 |
| 10 | 44711KVTD01 | TIRE, FR.(MRF)(90/90-12 54J) | 1 |
| 11 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
| 12 | 91052K24904 | BEARING, RADIAL BALL(6201U L) (FAG) | 2 |
| 13 | 91052K24905 | BEARING, RADIAL BALL(6201U L) (NBC) | 2 |
| 14 | 91251K24901 | DUST SEAL, 20X32X5(JK PIONEER) | 1 |
| 15 | 91252K24901 | DUST SEAL, 20X32X5(ARAI) | 1 |
