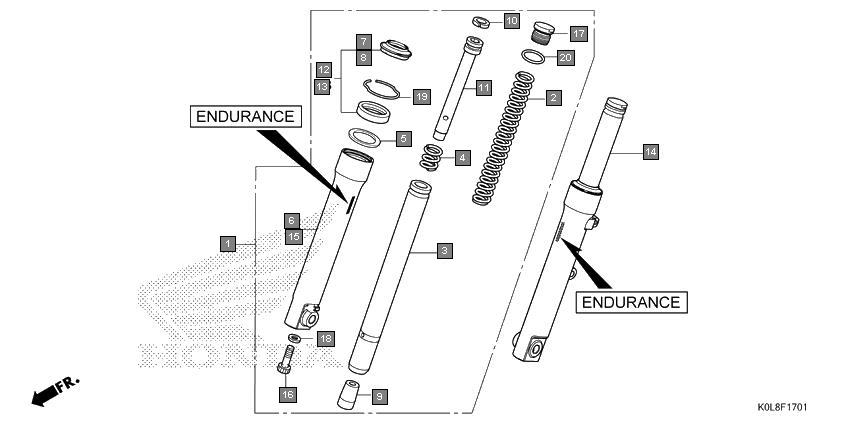

Scooters Activa125 SCV125L Frame Front fork(endurance)
Ref.No. Part No. Description Oty
1 51400K0LD12 FORK ASSY., R. FR.(ENDURANCE) 1
2 51400K0LD22 FORK ASSY., R. FR.(ENDURANCE) 1
3 51401K86D01 SPRING, FR. FORK(ENDURANCE) 2
4 51410K86D01 PIPE COMP., FR. FORK (ENDURANCE) 2
5 51412K86D01 SPRING, REBOUND(ENDURANCE) 2
6 51413K23902 RING, BACK UP 2
7 51420K0LD22 CASE, R. FR. BOTTOM(ENDURANCE) 1
8 51420K0LD12 CASE, R. FR. BOTTOM(ENDURANCE) 1
9 51425K0LD02 SEAL, DUST(ENDURANCE) (LEFT HAND SIDE) 1
10 51425K23902 DUST SEAL(ENDURANCE) 1
11 51432K0ED01 PIECE, OIL LOCK 2
12 51437K23902 RING, PISTON 2
13 51440K86D01 PIPE, SEAT(ENDURANCE) 2
14 51490K0LD02 SEAL SET, FR. FORK 1
15 51490K23902 SEAL SET, FR. FORK 1
16 51500K0LD22 FORK ASSY., L. FR.(ENDURANCE) 1
17 51500K0LD12 FORK ASSY., L. FR.(ENDURANCE) 1
18 51500K0LD02 FORK ASSY., L. FR.(ENDURANCE) 1
19 51520K0LD12 CASE, L. FR. BOTTOM(ENDURANCE) 1
20 51520K0LD02 CASE, L. FR. BOTTOM(ENDURANCE) 1
21 51520K0LD22 CASE, L. FR. BOTTOM(ENDURANCE) 1
22 90116K23902 BOLT, SOCKET, 8MM 2
23 90123K86D01 BOLT A, FR. FORK 2
24 90544K23902 WASHER, SPECIAL, 8MM 2
25 90651K23902 RING, OIL SEAL STOP 2
26 91351K23902 O-RING 2
