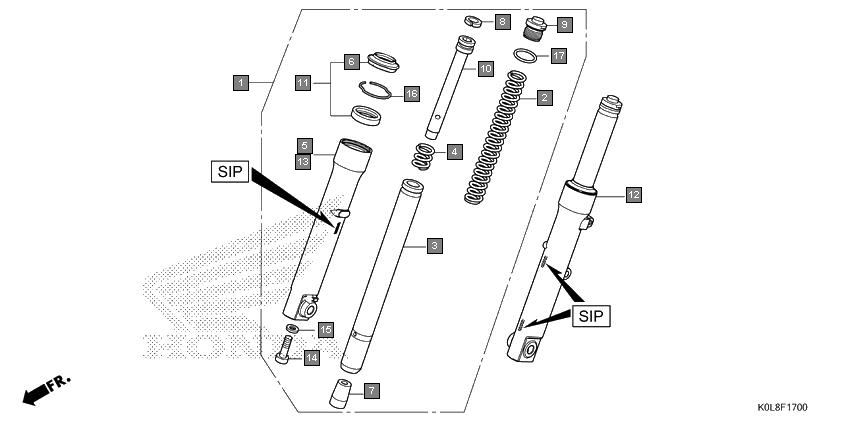

Scooters Activa125 SCV125L Frame Front fork(showa)
Ref.No. Part No. Description Oty
1 51400K0LD11 FORK ASSY., R. FR.(SHOWA) 1
2 51400K0LD21 FORK ASSY., R. FR.(SHOWA) 1
3 51401KVT911 SPRING, FR. FORK 2
4 51410K24911 PIPE COMP., FR. FORK 2
5 51412KSP901 SPRING, REBOUND 2
6 51420K0LD11 CASE, R. FR. BOTTOM(SHOWA) 1
7 51420K0LD21 CASE, R. FR. BOTTOM(SHOWA) 1
8 51425961013 DUST SEAL(SHOWA) 2
9 51432KFN851 PIECE, OIL LOCK 2
10 51437KVN901 RING, PISTON 2
11 51454K24911 BOLT, FR. FORK 2
12 51470KVT911 PIPE, SEAT 2
13 51490KWS901 SEAL SET, FR. FORK 2
14 51500K0LD11 FORK ASSY., L. FR.(SHOWA) 1
15 51500K0LD01 FORK ASSY., L. FR.(SHOWA) 1
16 51500K0LD21 FORK ASSY., L. FR.(SHOWA) 1
17 51520K0LD01 CASE, L. FR. BOTTOM(SHOWA) 1
18 51520K0LD11 CASE, L. FR. BOTTOM(SHOWA) 1
19 51520K0LD21 CASE, L. FR. BOTTOM(SHOWA) 1
20 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
21 90544439930 PACKING(SHOWA) 2
22 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
23 91356KAG901 O-RING(SHOWA) 2
