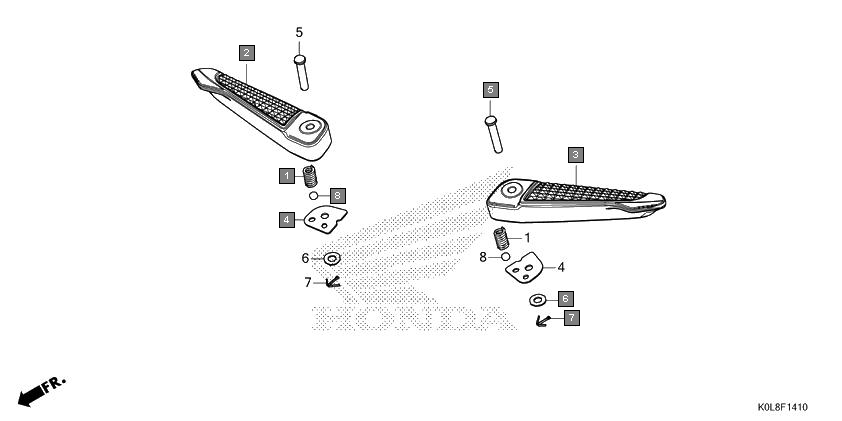

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28333300000 | SPRING, KICK STARTER STOPPER | 2 |
2 | 50711K0LD00 | ARM, R. PILLION STEP | 1 |
3 | 50712K0LD00 | ARM, L. PILLION STEP | 1 |
4 | 50718K24900 | PLATE, PILLION STEP CLICK | 2 |
5 | 90131KWPF00 | PIN, PILLION STEP | 2 |
6 | 9410106000 | WASHER, PLAIN, 6MM | 2 |
7 | 9420116150 | PIN, SPLIT, 1.6X15 | 2 |
8 | 9621108000 | BALL, STEEL, #8(1/4) | 2 |
