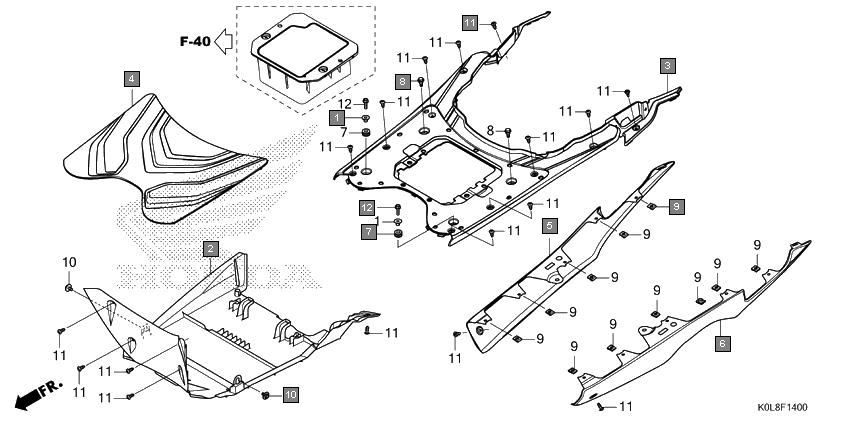

Scooters Activa125 SCV125L Frame Floor step/under cover
Ref.No. Part No. Description Oty
1 17232KYJ900 COLLAR, AIR CLEANER MOUNTING 2
2 50621K0LD00ZA COVER, UNDER *NH1* BLACK 1
3 64310K0LD00ZA STEP, FLOOR *NH1* BLACK 1
4 64315K0LD10 MAT, FLOOR 1
5 64320K0LP00ZZ COVER, R. SIDE 1
6 64330K0LP00ZZ COVER, L. SIDE 1
7 83545KCJ690 RUBBER, SIDE COVER 2
8 90101K43D00 BOLT, SPECIAL, 6MM 2
9 90344KRB900 NUT, CLIP, 5MM 11
10 934040601208 BOLT-WASHER, 6X12 2
11 9390325380 SCREW, TAPPING, 5X16 17
12 957010602007 BOLT, FLANGE, 6X20 2
