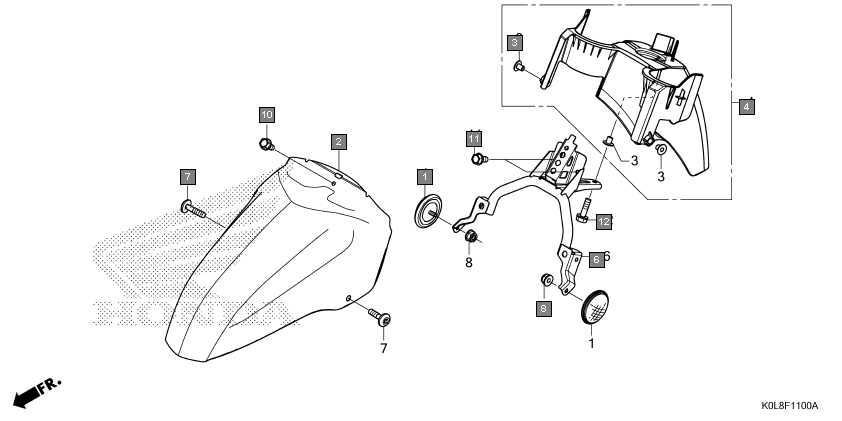

Scooters Activa125 SCV125L Frame Front fender
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 61103KRY900 COLLAR A, FR. FENDER 3
3 61120K0LD00ZA FENDER B, FR. *NH1* BLACK 1
4 61300K0LD00 STAY COMP., FR. FENDER 1
5 90106K0LD00 BOLT, SPECIAL HEX., 6X25 2
6 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
7 957010601008 BOLT, FLANGE, 6X10 1
8 957010601200 BOLT, FLANGE, 6X12 2
9 957010602008 BOLT, FLANGE, 6X20 1
10 61100K0LD30ZZ FENDER A. FR 1
