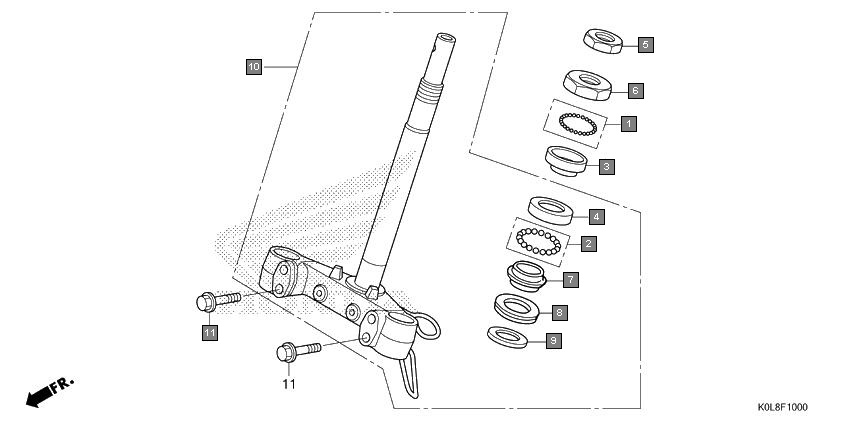

Scooters Activa125 SCV125L Frame Steering stem
Ref.No. Part No. Description Oty
1 06530KEMP00 BALL SET, STEEL, #5X26 1
2 06531KEMP00 BALL SET, STEEL, #8X19 1
3 50301KEM900 RACE, STEERING UPPER BALL 1
4 50302268010 RACE, STEERING BOTTOM BALL 1
5 50306KPL900 NUT, STEERING STEM LOCK 1
6 53211KEM900 RACE, STEERING TOP CONE 1
7 53212250010 RACE, STEERING BOTTOM CONE 1
8 53214250000 DUST SEAL, STEERING HEAD 1
9 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
10 53219K0LD20 STEM SUB ASSY., STEERING 1
11 53219K0LD10 STEM SUB ASSY., STEERING 1
12 53219K0LD00 STEM SUB ASSY., STEERING 1
13 90101KVTD00 BOLT, FLANGE, 10X42 4
