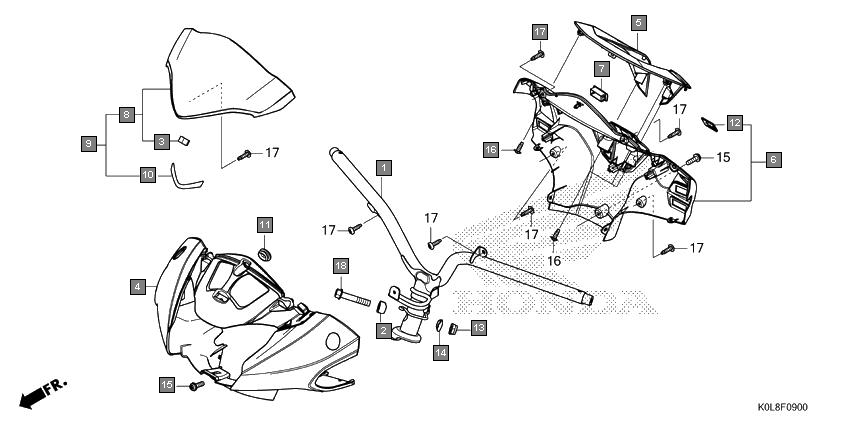

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 53100K0LD10 | HANDLE COMP., STEERING | 1 |
2 | 53100K0LD00 | HANDLE COMP., STEERING | 1 |
3 | 53124KWP900 | COLLAR, HANDLE SETTING | 1 |
4 | 53202K24H00 | CUSHION, FR. HANDLE | 1 |
5 | 53205K0LD00ZT | COVER, HANDLE FR. *NHC41P* PEARL PRECIOUS WHITE | 1 |
6 | 53205K0LD00ZQ | COVER, HANDLE FR. *PB423M* MIDNIGHT BLUE METALLIC 2 | 1 |
7 | 53205K0LD00ZR | COVER, HANDLE FR. *NHC31M* HEAVY GRAY METALLIC 2 | 1 |
8 | 53205K0LD00ZP | COVER, HANDLE FR. *R390M* REBEL RED METALLIC 2 | 1 |
9 | 53207K0LD00ZD | GARNISH, METER *NHC38M* CLOUD SILVER METALLIC 2 | 1 |
10 | 53207K0LD00ZB | GARNISH, METER *NH1* BLACK | 1 |
11 | 53208K0LD00ZA | COVER COMP., HANDLE RR. *NH1* BLACK | 1 |
12 | 53209K0LD00ZA | CAP, STARTER SWITCH *NH1* BLACK | 1 |
13 | 53210K0LD00 | VISOR COMP., METER | 1 |
14 | 53210K0LD10 | VISOR COMP., METER | 1 |
15 | 53211K0LD10 | CUSHION, METER VISOR | 1 |
16 | 64413KSSC00 | GROMMET, BODY COVER | 1 |
17 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
18 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 1 |
19 | 90502KWP900 | COLLAR B, HANDLE SETTING | 1 |
20 | 938910501607 | SCREW-WASHER, 5X16 | 2 |
21 | 9390334310 | SCREW, TAPPING, 4X12 | 4 |
22 | 9390334480 | SCREW, TAPPING, 4X16 | 7 |
23 | 958011005508 | BOLT, FLANGE, 10X55 | 1 |
