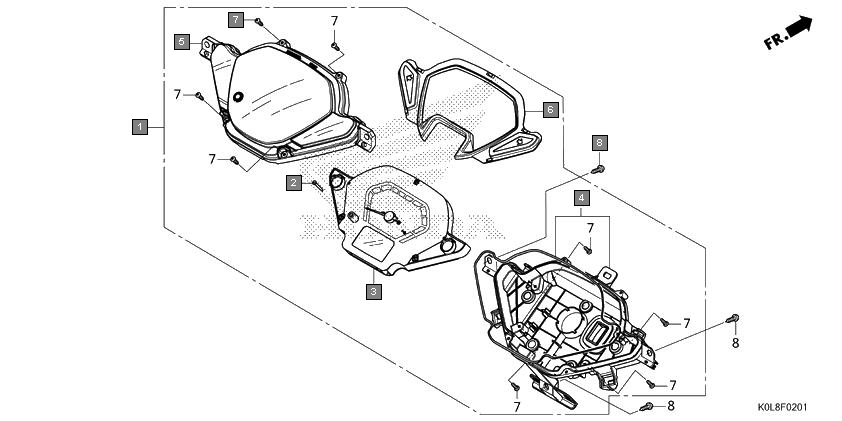

Scooters Activa125 SCV125L Frame Meter(scv125-2id,3id)
Ref.No. Part No. Description Oty
1 37200K0LD21 METER ASSY., COMBINATION(KPH) 1
2 37200K0LD11 METER ASSY., COMBINATION(KPH) 1
3 37202K0LD11 ROD 1
4 37210K0LD21 METER ASSY., SPEED(KPH) 1
5 37210K0LD11 METER ASSY., SPEED(KPH) 1
6 37212K0LD11 CASE ASSY., UNDER 1
7 37213K0LD11 LENS ASSY. 1
8 37302K0LD11 REFLECTOR ASSY. 1
9 90101KY6008 SCREW, TAPPING, 3X14 8
10 9390325380 SCREW, TAPPING, 5X16 3
