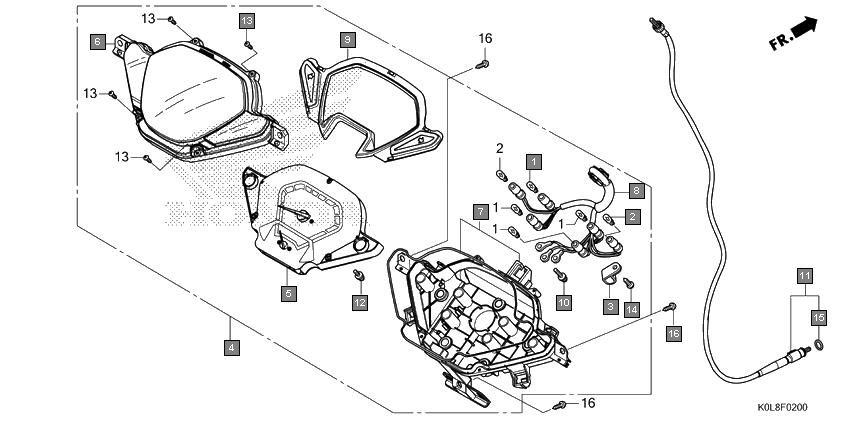

Scooters Activa125 SCV125L Frame Meter(scv125-id)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 4
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 37121KV3008 CLAMP 1
4 37200K0LD01 SPEEDOMETER ASSY.(KPH) 1
5 37210K0LD01 METER COMP., SPEED & FUEL(KPH) 1
6 37211K0LD01 LENS 1
7 37220K0LD01 CASE ASSY., LOWER 1
8 37224K0LD01 SOCKET COMP. 1
9 37302K0LD11 REFLECTOR ASSY. 1
10 37305KE5008 SCREW-WASHER, 3X22 3
11 44830KVT940 CABLE COMP., SPEEDOMETER 1
12 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
13 90101KY6008 SCREW, TAPPING, 3X14 4
14 90109MZ5008 SCREW, TAPPING, 4X14 1
15 91352GAZ930 O-RING, 8.5X1.5 1
16 9390325380 SCREW, TAPPING, 5X16 3
