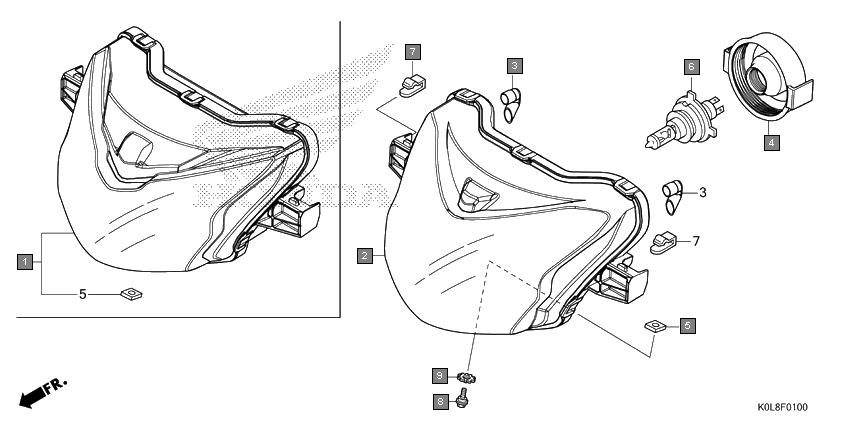

Scooters Activa125 SCV125L Frame Headlight
Ref.No. Part No. Description Oty
1 33100K0LD11 HEADLIGHT ASSY.(LED) 1
2 33110K0LD01 HEADLIGHT UNIT 1
3 33113K0LD01 PIPE, CP 2
4 33126K0LD01 COVER, RUBBER 1
5 33128K0LD01 NUT, SPECIAL, 4X0.7 1
6 34901KTED01 BULB, HEADLIGHT(12V 35/35W) (OSRAM) 1
7 34901KVN971 BULB, HEADLIGHT(HS1) (12V 35/35W)(PHOENIX) 1
8 53209GAH000 CLIP, HEADLIGHT 2
9 90103KVH900 BOLT, ADJUSTER 1
10 90307GW3980 WASHER, LOCK, 6MM 1
