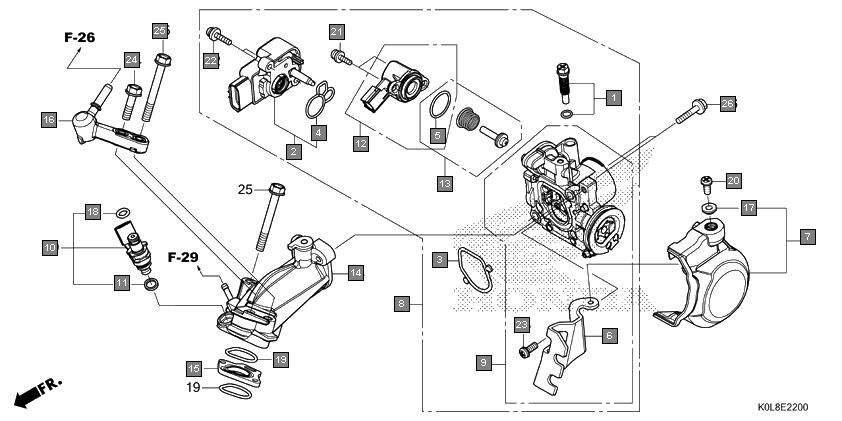

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16016K0JN01 | SCREW SET | 1 |
| 2 | 16060K0RV01 | SENSOR SET | 1 |
| 3 | 16075K0LD01 | O-RING, THROTTLE BODY | 1 |
| 4 | 16077K0RV01 | O-RING | 1 |
| 5 | 16077KVBS51 | O-RING, 1.9X20.4 | 1 |
| 6 | 16169K0LD01 | STAY, WIRE | 1 |
| 7 | 16305K0LD00 | COVER COMP., THROTTLE BODY | 1 |
| 8 | 16400K0LD11 | BODY ASSY., THROTTLE(GQRPC A) | 1 |
| 9 | 16400K0LD01 | BODY ASSY., THROTTLE(GQREC A) | 1 |
| 10 | 16410K0LD01 | BODY SET | 1 |
| 11 | 16410K0LD11 | BODY SET | 1 |
| 12 | 16450K0LD01 | INJECTOR ASSY., FUEL | 1 |
| 13 | 16472K0LD01 | RING, SEAL | 1 |
| 14 | 16480K0LD01 | SOLENOID | 1 |
| 15 | 16485GGZJ01 | SEAT SET | 1 |
| 16 | 17110K0LD00 | PIPE COMP., IN. | 1 |
| 17 | 17119K0LD00 | INSULATOR, IN. PIPE | 1 |
| 18 | 17560K0LD00 | JOINT COMP., INJECTOR | 1 |
| 19 | 61106K0LD00 | COLLAR,THROTTLE BODY COVER | 1 |
| 20 | 91301GGLJ01 | O-RING, 6.3X2.2 | 1 |
| 21 | 91301K0LD00 | O-RING, IN. PIPE | 2 |
| 22 | 93500050120A | SCREW, PAN, 5X12 | 1 |
| 23 | 938910401018 | SCREW-WASHER, 4X10 | 2 |
| 24 | 938910401618 | SCREW-WASHER, 4X16 | 2 |
| 25 | 938920501218 | SCREW-WASHER, 5X12 | 1 |
| 26 | 957010602200 | BOLT, FLANGE, 6X22 | 1 |
| 27 | 957010605000 | BOLT, FLANGE, 6X50 | 2 |
| 28 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
