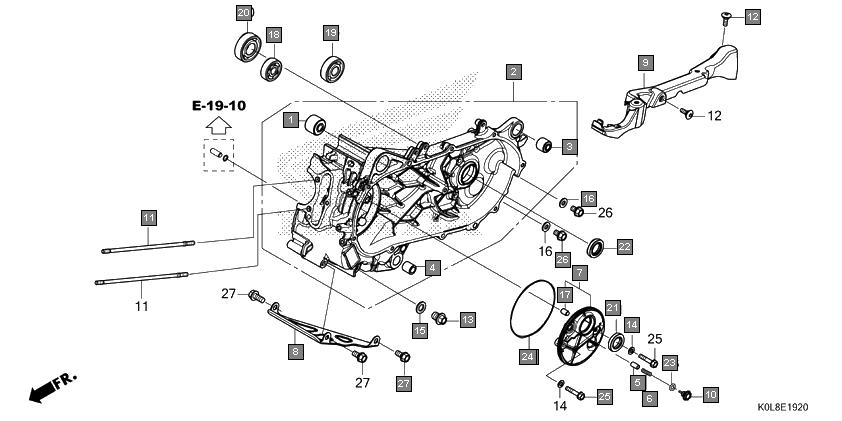

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 11103K0LD00 | BUSH, ENGINE HANGER RUBBER | 1 |
| 2 | 11200K0LD00 | CRANKCASE COMP., L. | 1 |
| 3 | 11203K0LD00 | BUSH, RR. CUSHION UNDER RUBBER | 1 |
| 4 | 11205GBC300 | BUSH, MAIN STAND | 1 |
| 5 | 11215K0JN00 | PLUG, BEARING PUSH | 1 |
| 6 | 11216K0LD00 | SPRING, BEARING PUSH | 1 |
| 7 | 11320K0LD00 | SEPARATOR COMP., OIL | 1 |
| 8 | 11411K0LD00 | PLATE, ENGINE GUARD | 1 |
| 9 | 32112K0LD00 | PROTECTOR, SPEED SENSOR | 1 |
| 10 | 90001K0JN00 | BOLT, SPECIAL, 8MM | 1 |
| 11 | 90031K0JN00 | BOLT, CYLINDER STUD(7X199.5) | 2 |
| 12 | 90101K29900 | BOLT, SOCKET, 6X18 | 2 |
| 13 | 90131KRM840 | BOLT, DRAIN PLUG, 12MM | 1 |
| 14 | 90401K0JN00 | WASHER, SEALING, 6MM | 2 |
| 15 | 90401KWPF00 | WASHER, DRAIN PLUG, 12MM | 1 |
| 16 | 90474KWPF00 | WASHER, SEALING, 8MM | 2 |
| 17 | 90702K0LD00 | PIN, SPECIAL DOWEL, 8X12 | 1 |
| 18 | 91006KWPG31 | BEARING, RADIAL BALL, 6201 (NBC) | 1 |
| 19 | 91007KWPG32 | BEARING, RADIAL BALL, 6202 (FAG) | 1 |
| 20 | 91104K24901 | BEARING, RADIAL BALL, 6204 | 1 |
| 21 | 91202K0LD01 | OIL SEAL, 21.8X31.5X6(ARS) | 1 |
| 22 | 91203KWPD01 | OIL SEAL, 20X32X6.2(ARS) | 1 |
| 23 | 91301K0JN00 | O-RING, 6.8X2.0 | 1 |
| 24 | 91307K0LD01 | O-RING, 95X2.0(MEGA RUBBER) | 1 |
| 25 | 91307K0LD02 | O-RING, 95X2.0(BONY) | 1 |
| 26 | 957010603000 | BOLT, FLANGE, 6X30 | 2 |
| 27 | 957010801200 | BOLT, FLANGE, 8X12 | 2 |
| 28 | 957010801600 | BOLT, FLANGE, 8X16 | 3 |
| 29 | 91307K0LD03 | O-Ring 95X2.0(JAYASHREE) | 1 |
