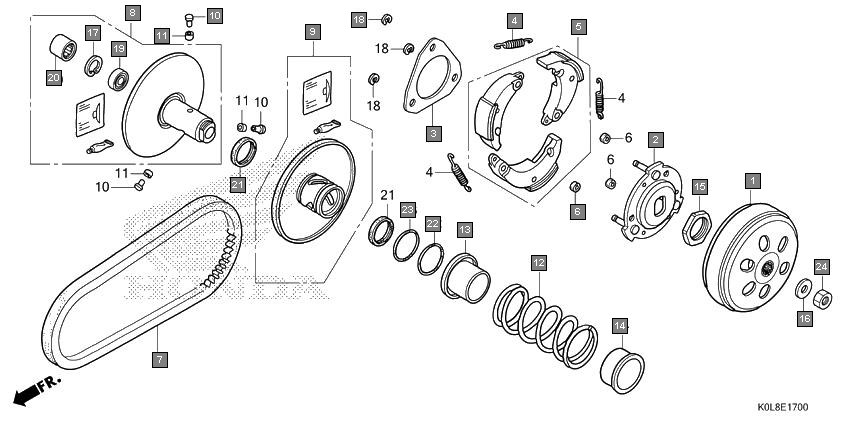

Scooters Activa125 SCV125L Engine Driven face
Ref.No. Part No. Description Oty
1 22100KWPD01 OUTER COMP., CLUTCH(F.C.C.) 1
2 22350K0LD01 PLATE COMP., DRIVE 1
3 22361KWPD00 PLATE, CLUTCH SIDE 1
4 22401K0LD00 SPRING, CLUTCH 3
5 22535K0LD00 WEIGHT SET, CLUTCH 1
6 22804148000 RUBBER, CLUTCH DAMPER 3
7 23100K0LD01 BELT, DRIVE 1
8 23205K0LD00 FACE SET, DRIVEN 1
9 23224K0LD00 FACE SET, MOVABLE DRIVEN 1
10 23225KSY900 PIN, ROLLER GUIDE 3
11 23226KVB900 ROLLER, GUIDE 3
12 23233K0LD01 SPRING, DRIVEN FACE 1
13 23237K0LD01 COLLAR, SEAL 1
14 23238KWP900 COLLAR, SPRING 1
15 90202KPL900 NUT, SPECIAL, 28MM 1
16 90441GY6940 WASHER, 12.2X29X2.5 1
17 90601KWP900 CIRCLIP, INTERNAL, 28MM 1
18 90605166720 CIRCLIP, 7MM 3
19 91009KVY961 BEARING, RADIAL BALL, 6902U(NSK) 1
20 91004GGCG01 BEARING, RADIAL BALL, 6902U 1
21 91109KVY902 BEARING, NEEDLE, 20X29X1(SCHAEFFLER) 1
22 91109GGCG01 BEARING, NEEDLE, 20X29X18. 1
23 91211K24901 SEAL, DRIVEN FACE, 34X39X3 2
24 91211K0LD01 OIL SEAL, 34X39X3 2
25 91351642000 O-RING, PINION CAP 1
26 91351GR1000 O-RING, 38.5X2 1
27 9403012200 NUT, HEX., 12MM 1
