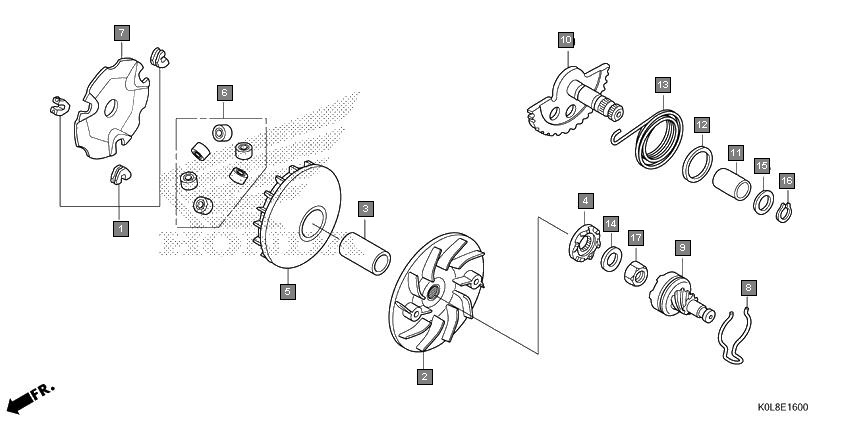

Scooters Activa125 SCV125L Engine Drive face
Ref.No. Part No. Description Oty
1 22011K24900 PIECE SET, SLIDE 1
2 22102K0LD00 FACE, DRIVE 1
3 22105K0LD00 BOSS, DRIVE FACE 1
4 22109KZL840 RATCHET, STARTER 1
5 22110K0LD00 FACE COMP., MOVABLE DRIVE 1
6 22123K97B00 ROLLER SET, WEIGHT 1
7 22131K0LD00 PLATE, RAMP 1
8 28223KZL840 SPRING, KICK DRIVEN GEAR 1
9 28230K0JN00 GEAR COMP., KICK DRIVEN(7T) 1
10 28250K0LD00 SPINDLE COMP., KICK STARTER 1
11 28253KVT900 BUSH, KICK SPINDLE 1
12 28255KPL900 COLLAR, KICK BOSS 1
13 28281K32700 SPRING, KICK RETURN 1
14 90426KVB900 WASHER, SPECIAL, 14MM 1
15 90451KVT900 WASHER, KICK SPINDLE 1
16 90608KVT901 CIRCLIP, EXTERNAL, 16MM 1
17 9403014200 NUT, HEX., 14MM 1
