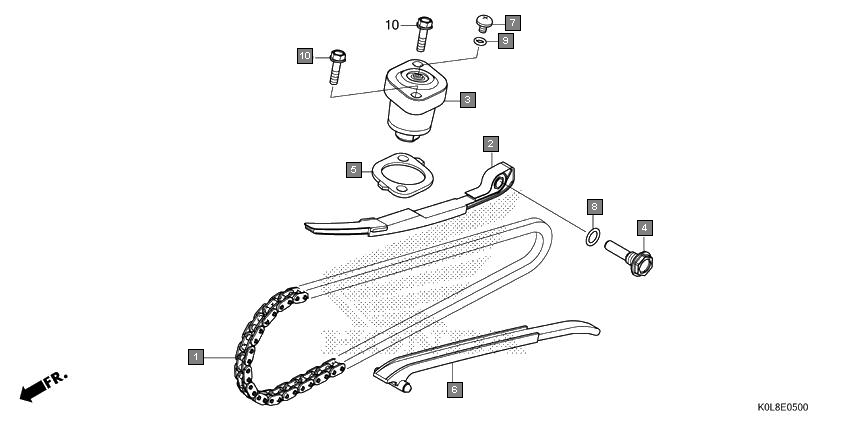

Scooters Activa125 SCV125L Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14401KWP901 CHAIN, CAM(90L) 1
2 14510K0LD00 TENSIONER, CAM CHAIN 1
3 14520KZKD21 LIFTER ASSY., TENSIONER(ADVIK) 1
4 14531K0JN00 PIVOT, CAM CHAIN TENSIONER 1
5 14560GGZJ01 GASKET, TENSIONER LIFTER 1
6 14611K0LD00 GUIDE, CAM CHAIN 1
7 90005KY7000 SCREW, PAN, 6X6 1
8 91301K0JN00 O-RING, 6.8X2.0 1
9 957010602200 BOLT, FLANGE, 6X22 2
10 91306KRM840 O-RING, 1.5X9.5 1
