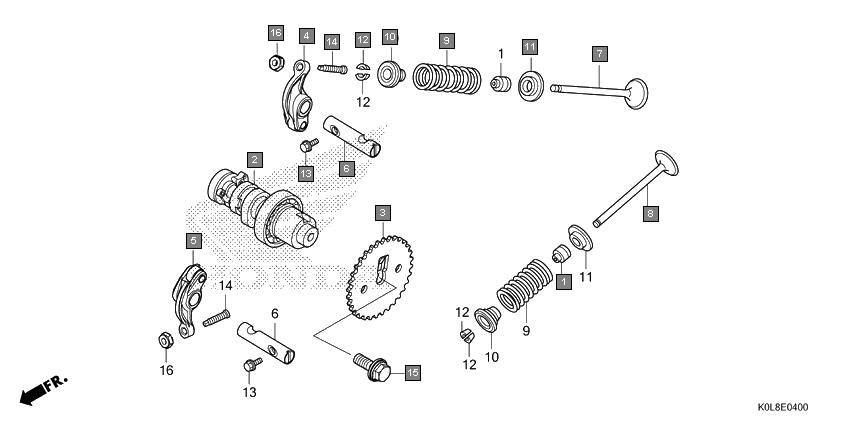

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209ML0722 | SEAL, VALVE STEM(ARAI) | 2 |
2 | 14100K0LD00 | CAMSHAFT COMP. | 1 |
3 | 14321KYY900 | SPROCKET, CAM(32T) | 1 |
4 | 14430K0LD00 | ARM COMP., IN. VALVE ROCKER | 1 |
5 | 14440K0LD00 | ARM COMP., EX. VALVE ROCKER | 1 |
6 | 14451K0LD00 | SHAFT, ROCKER ARM | 2 |
7 | 14711K0LD00 | VALVE, IN. | 1 |
8 | 14721K0JN00 | VALVE, EX. | 1 |
9 | 14751K0LD00 | SPRING, VALVE | 2 |
10 | 14771K0LD00 | RETAINER, VALVE SPRING | 2 |
11 | 14777K0JN00 | SEAT, VALVE SPRING | 2 |
12 | 14781KYJ710 | COTTER, VALVE | 4 |
13 | 90002KWB600 | BOLT, FLANGE, 5X12 | 2 |
14 | 90012KWW740 | SCREW, TAPPET ADJUSTING | 2 |
15 | 90082KYY900 | BOLT, WASHER, 8X22 | 1 |
16 | 90206001000 | NUT, TAPPET ADJUSTING | 2 |
