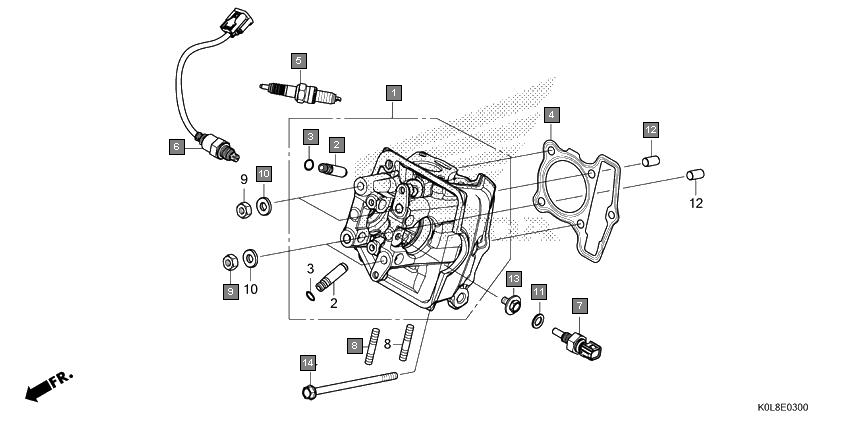

Scooters Activa125 SCV125L Engine Cylinder head
Ref.No. Part No. Description Oty
1 12200K0LD00 HEAD COMP., CYLINDER 1
2 12204K0JP00 GUIDE, VALVE(O.S.) 2
3 12206K0JN00 CLIP, VALVE GUIDE 2
4 12252K0LD00 GASKET, CYLINDER HEAD (O.S. 0.75/1.00) 1
5 12251K0LD01 GASKET, CYLINDER HEAD (STD./0.25/0.50) 1
6 31918K0LD01 PLUG, SPARK(MR8E-9)(NGK) 1
7 36532K0LD01 SENSOR, OXYGEN 1
8 37750K0LD01 SENSOR ASSY., OIL TEMPERATURE 1
9 90032K0JN00 BOLT, STUD, 7X16.5 2
10 90201GCC000 NUT, HEX., 7MM 4
11 90401GCC000 WASHER, 7.2X16X2.5 4
12 90443MB0000 WASHER, SEALING, 10MM 1
13 90701KPL900 DOWEL PIN, SPECIAL, 8X14 2
14 934040601200 BOLT-WASHER, 6X12 1
15 957010610500 BOLT, FLANGE, 6X105 1
