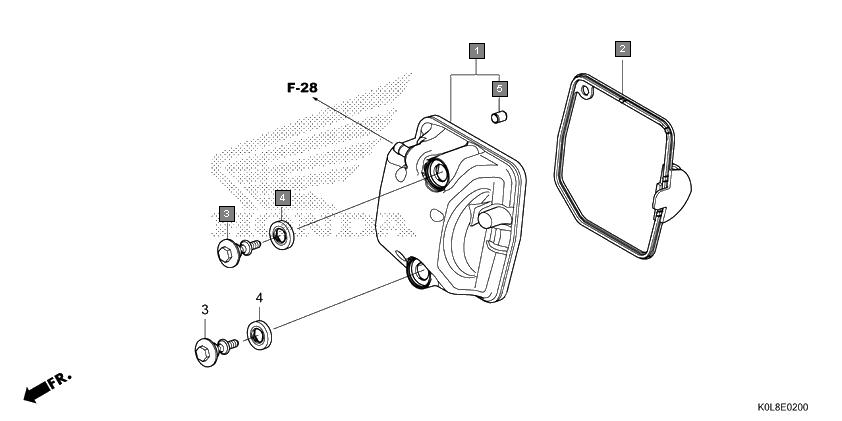

Scooters Activa125 SCV125L Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12310K0LD00 COVER COMP., HEAD 1
2 12391K0LD01 GASKET COMP., CYLINDER HEAD COVER 1
3 90017KPL900 BOLT, HEAD COVER 2
4 90543MV9670 RUBBER, MOUNTING 2
5 90703K0LD00 DOWEL PIN, 8X10 1
