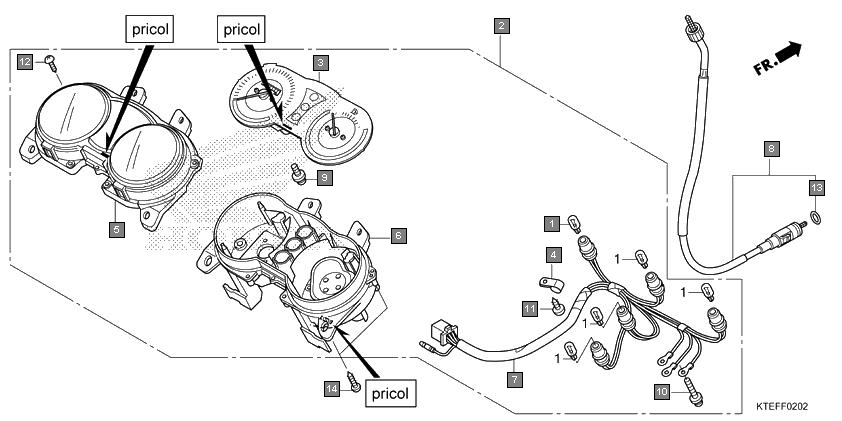

Motorcycles CB Shine CBF125L Frame Meter(cbf125h,j,k,l/cbf125bh)(pricol)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 5
2 37100KTED82 SPEEDOMETER ASSY.(KPH)(PRICOL) 1
3 37210KTED82 SPEEDOMETER COMP.(KPH) 1
4 37215KTED02 CLAMP(PRICOL) 1
5 37310KTED02 LENS ASSY.(PRICOL) 1
6 37610KTED02 CASE ASSY., UNDER(PRICOL) 1
7 37619KTED02 SOCKET COMP.(PRICOL) 1
8 44830KTED12 CABLE COMP., SPEEDOMETER 1
9 90101KTED02 SCREW-WASHER, SPECIAL(PRICOL) 2
10 90102KTED02 SCREW-WASHER, 3X22 3
11 90103KTED02 SCREW, TAPPING, 4X14 1
12 90104KTED02 SCREW, TAPPING, 3X14 4
13 91352671004 O-RING, 8.5X1.5(NOK) 1
14 91352671003 O-RING, 8.5X1.5(ARAI) 1
15 9390335310 SCREW, TAPPING, 5X16 4
