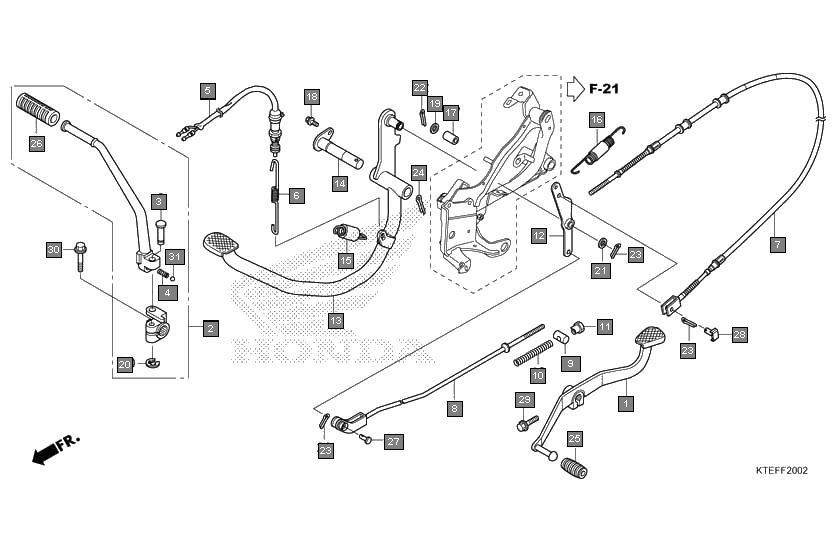

Motorcycles CB Shine CBF125L Frame Pedal/kick starter arm(cbs)(2)
Ref.No. Part No. Description Oty
1 24701KTE910 PEDAL, GEAR CHANGE 1
2 28300KTE650 ARM ASSY., KICK STARTER 1
3 28321KTE910 PIN, KICK STARTER 1
4 28333KANT40 SPRING, KICK STARTER STOPPER 1
5 35350KTE651 SWITCH ASSY., RR. STOP 1
6 35350KTED01 SWITCH ASSY., RR. STOP(MINDA) 1
7 35357KTE650 SPRING, STOP SWITCH 1
8 43450KTEDB1 CABLE COMP., BRAKE(CBS) (HI-LEX) 1
9 43451KTEDB0 ROD COMP., RR. BRAKE 1
10 43455KSP900 JOINT, BRAKE ARM 1
11 43456KSP900 SPRING, BRAKE ROD 1
12 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
13 43580KTEDB0 EQUALIZER COMP. 1
14 46500KTEDB0 PEDAL COMP., BRAKE 1
15 46513KTE670 SHAFT COMP., BRAKE PEDAL PIVOT 1
16 46514KTEDB0 SPRING SET, BRAKE PEDAL 1
17 46613KTEDB0 SPRING SET, DELAY 1
18 50719KTEDB0 COLLAR, EQUALIZER STOPPER 1
19 90104MEA740 BOLT, FLANGE,(DR)6X12 1
20 90501KTEDB0 WASHER, 6MM 1
21 90601473003 E-RING, 8MM 1
22 9410110000 WASHER, PLAIN, 10MM 1
23 9420120100 PIN, SPLIT, 2.0 1
24 9420120150 PIN, SPLIT, 2.0X15 3
25 9420130300 PIN, SPLIT, 3.0X30 1
26 9501140000 RUBBER, CHANGE PEDAL 1
27 9501151000 RUBBER A, KICK STARTER 1
28 9501553000 PIN C, JOINT 1
29 9501554000 PIN D, JOINT 1
30 957010602000 BOLT, FLANGE, 6X20 1
31 957010802500 BOLT, FLANGE, 8X25 1
32 9621108000 BALL, STEEL, #8(1/4) 1
