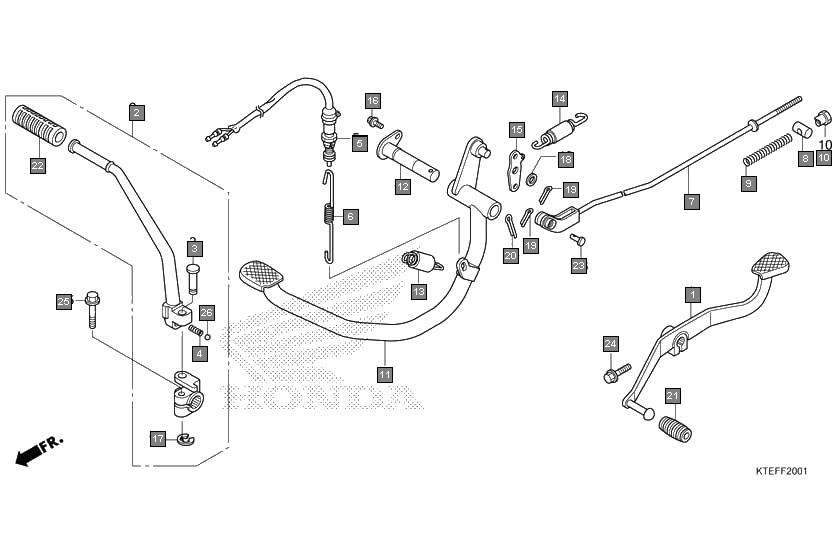

Motorcycles CB Shine CBF125L Frame Pedal/kick starter arm(cbs)(1)
Ref.No. Part No. Description Oty
1 24701KTE910 PEDAL, GEAR CHANGE 1
2 28300KTE650 ARM ASSY., KICK STARTER 1
3 28321KTE910 PIN, KICK STARTER 1
4 28333KANT40 SPRING, KICK STARTER STOPPER 1
5 35350KTED01 SWITCH ASSY., RR. STOP(MINDA) 1
6 35350KTE651 SWITCH ASSY., RR. STOP 1
7 35357KTE650 SPRING, STOP SWITCH 1
8 43451KTE670 ROD COMP., RR. BRAKE 1
9 43455KSP900 JOINT, BRAKE ARM 1
10 43456KSP900 SPRING, BRAKE ROD 1
11 43459KSP900 NUT, BRAKE ROD ADJUSTING 1
12 46500KTE670 PEDAL COMP., BRAKE 1
13 46513KTE670 SHAFT COMP., BRAKE PEDAL PIVOT 1
14 46514KTE670 SPRING SET, BRAKE PEDAL 1
15 46613KTE670 SPRING SET, DELAY 1
16 47651KTE670 EQUALIZER(CBS) 1
17 90104MEA740 BOLT, FLANGE,(DR)6X12 1
18 90601473003 E-RING, 8MM 1
19 9410110000 WASHER, PLAIN, 10MM 1
20 9420120150 PIN, SPLIT, 2.0X15 2
21 9420130300 PIN, SPLIT, 3.0X30 1
22 9501140000 RUBBER, CHANGE PEDAL 1
23 9501151000 RUBBER A, KICK STARTER 1
24 9501553000 PIN C, JOINT 1
25 957010602000 BOLT, FLANGE, 6X20 1
26 957010802500 BOLT, FLANGE, 8X25 1
27 9621108000 BALL, STEEL, #8(1/4) 1
