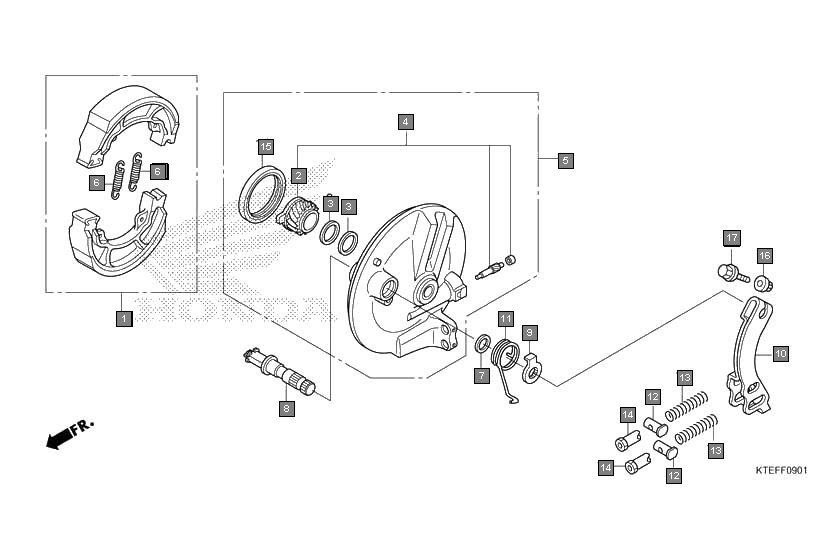

Motorcycles CB Shine CBF125L Frame Front brake panel(cbs)
Ref.No. Part No. Description Oty
1 06430KVTD10 SHOE SET, BRAKE(ASK) 1
2 44806KTE910 GEAR, SPEEDOMETER(21T) 1
3 44809KTC900 WASHER, SPEEDOMETER GEAR 2
4 44820KTE911 GEAR SET, SPEEDOMETER 1
5 45010KTEDB0ZA PANEL SUB COMP., FR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
6 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
7 45134250000 DUST SEAL, BRAKE CAM 1
8 45141KWPD00 CAM, FR. BRAKE (RR.) 1
9 45145096650 INDICATOR, FR. BRAKE 1
10 45410K24G00 ARM, FR. BRAKE 1
11 45435KPL900 SPRING, BRAKE ARM RETURN 1
12 45453KWP911 JOINT, BRAKE ARM 2
13 45456KWP910 SPRING, BRAKE CABLE END 2
14 45459KWP911 NUT, BRAKE ADJUSTING 2
15 91251GK4003 OIL SEAL, 47X60X7(ARAI) 1
16 9405006000 NUT, FLANGE, 6MM 1
17 957020603200 BOLT, FLANGE, 6X32 1
18 957010603200 BOLT, FLANGE, 6X32 1
