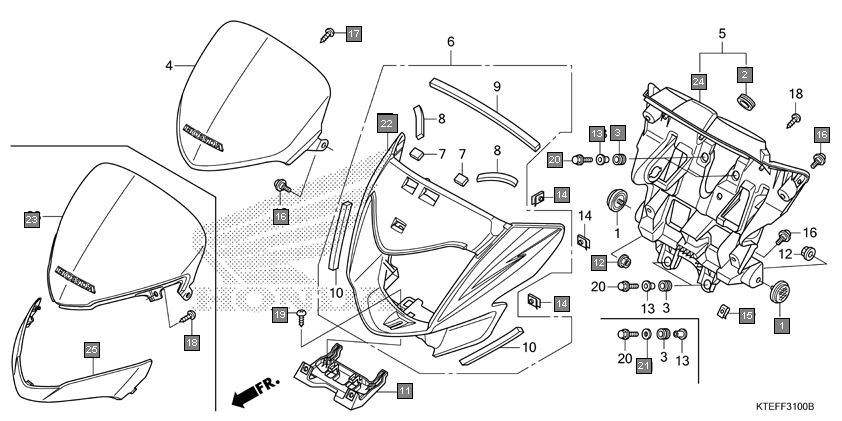

Motorcycles CB Shine CBF125L Frame Front cowl
Ref.No. Part No. Description Oty
1 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
2 37312K67900 GROMMET, COMBINATION SWITCH 1
3 61103357000 RUBBER, FR. FENDER MOUNTING 4
4 64315KTE600 STAY, FR. NUMBER PLATE 1
5 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
6 90310KWS900 COLLAR, FR. COWL 4
7 90320GC3000 NUT, SPRING, 5MM 6
8 90320KTE600 NUT, SPRING, 5MM 2
9 91509GE2760 SCREW, PAN, 5X11.5 6
10 9390324320 SCREW, TAPPING, 4X12 1
11 9390324380 SCREW, TAPPING, 4X12 3
12 9390325220 SCREW, TAPPING, 5X12 2
13 960010602200 BOLT, FLANGE, 6X22 4
14 9410306800 WASHER, PLAIN, 6MM 2
15 61210KTEDC0ZB COWL SET, FR.(WL) *TYPE1* 1
16 61210KTEDC0ZA COWL SET, FR.(WL) *TYPE2* 1
17 61220KTED80ZA WINDSCREEN SET(WL) *TYPE1* 1
18 61311KTED80 COVER, HEADLIGHT RR. 1
19 67111KTED80 GARNISH, SCREEN 1
