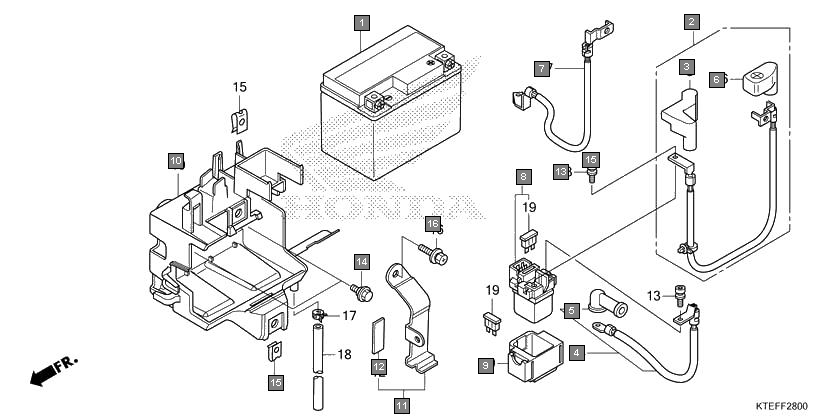

Motorcycles CB Shine CBF125L Frame Battery
Ref.No. Part No. Description Oty
1 31500KTE621 BATTERY(ATZ4L)(AMARA RAJA) 1
2 31500KVT941 BATTERY ASSY.(ETZ4)(EXIDE) 1
3 32401KTE650 CABLE, STARTER MAGNETIC BATTERY 1
4 32406KTE650 COVER, STARTER MAGNETIC TERMINAL 1
5 32410KTE650 CABLE, STARTER MOTOR 1
6 32411253000 COVER, STARTER MOTOR TERMINAL 1
7 32417KTE650 COVER, BATTERY TERMINAL 1
8 32601KTE650 CABLE, BATTERY EARTH 1
9 35850K67901 SWITCH ASSY., STARTER MAGNETIC (MINDA) 1
10 35850K38901 SWITCH ASSY., STARTER MAGNETIC 1
11 35856KTE650 RUBBER, SHOCK 1
12 50380KTED00 BOX, BATTERY 1
13 50381KTE650 BAND, BATTERY 1
14 77211KVE900 CUSHION, RR. COWL 1
15 90111MR5000 BOLT, SOCKET, 5X9 2
16 90116KVB900 BOLT, FLANGE, 6MM 2
17 90320747000 NUT, SPRING, 6MM 2
18 92301060120A BOLT, RECESSED, 6X12 1
19 950024085008 CLAMP, TUBE(D8.5) 1
20 950055038030 TUBE, 5X380(95005-50001-30M) 1
21 9820032000 FUSE, BLADE(20A) 2
