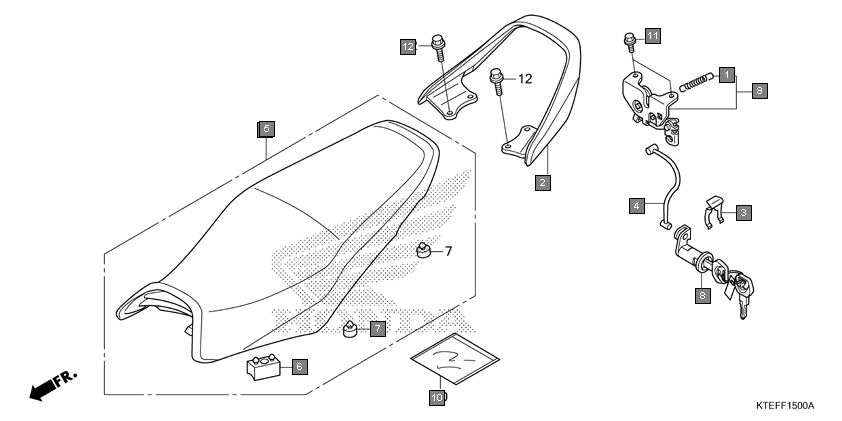

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16574ZG8300 | SPRING, LEVER | 1 |
| 2 | 50400KTE650ZL | GRIP, RR. *NHC45M* SPEAR SILVER METALLIC | 1 |
| 3 | 50400KTE650ZF | GRIP, RR. *R355M* IMPERIAL RED METALLIC | 1 |
| 4 | 75581GN8920 | SPRING, LOCK KEY SETTING | 1 |
| 5 | 77156KTE910 | CABLE, SEAT LOCK | 1 |
| 6 | 77200KTE651ZA | SEAT ASSY., DOUBLE(VARROC) *TYPE1* | 1 |
| 7 | 77200KTED92ZA | SEAT ASSY., DOUBLE *TYPE1* | 1 |
| 8 | 77204KCC900 | RUBBER A, SEAT SETTING | 2 |
| 9 | 77206KTE910 | RUBBER, SEAT SETTING | 4 |
| 10 | 77225KTE911 | LOCK ASSY., SEAT | 1 |
| 11 | 77225KTED02 | LOCK ASSY., SEAT(MINDA) | 1 |
| 12 | 77235KTE910 | CATCH COMP., SEAT | 1 |
| 13 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 14 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
| 15 | 957010801800 | BOLT, FLANGE, 8X18 | 4 |
