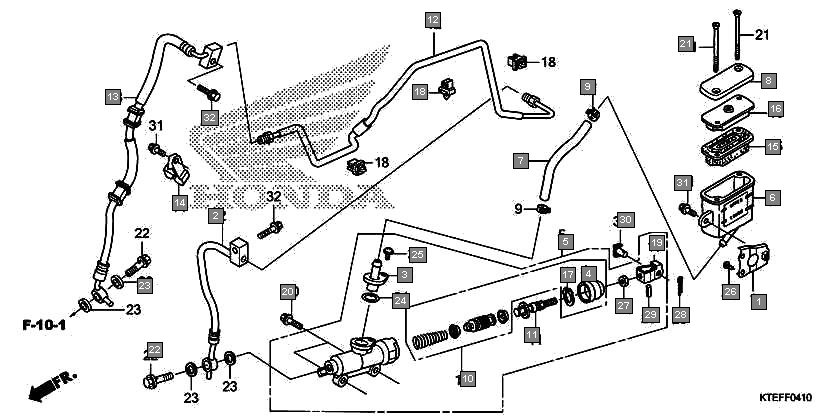

Motorcycles CB Shine CBF125L Frame Brake hose/brake pipe/brake master cylinder(cbs)
Ref.No. Part No. Description Oty
1 17209KTE670 STAY, OIL CUP 1
2 43310KTE671 HOSE COMP., RR. BRAKE 1
3 43503KTE671 CONNECTOR 1
4 43504KVSF31 BOOT 1
5 43510KTE671 CYLINDER SUB ASSY., RR. BRAKE MASTER 1
6 43511K38911 CUP COMP., OIL 1
7 43512KZL931 HOSE, MASTER CYLINDER 1
8 43513KBP881 CAP, MASTER CYLINDER 1
9 43514KS6701 CLAMP, MASTER CYLINDER OIL HOSE 2
10 43520KVSF31 PISTON SET, MASTER CYLINDER 1
11 43530KVSF31 ROD COMP., PUSH 1
12 45127KTE670 PIPE COMP., FR. BRAKE 1
13 45128KTE671 HOSE COMP. B, FR. BRAKE 1
14 45157KTE670 CLAMPER B, FR. BRAKE HOSE 1
15 45520GW0911 DIAPHRAGM 1
16 45521GW0911 PLATE, DIAPHRAGM 1
17 46182KVSF31 CIRCLIP, MASTER CYLINDER(CBS) 1
18 46391SDAA01 CLIP G, BRAKE PIPE 3
19 46504KVSF31 JOINT, BRAKE ROD 1
20 90101K38910 BOLT, FLANGE, 6X18 2
21 90140KZZ901 SCREW, FLAT, 4X45 2
22 90145GW3981 BOLT, OIL, 10X22 2
23 90545300000 WASHER, OIL BOLT 4
24 91212422006 O-RING, 14.8X2.4 1
25 938930401217 SCREW-WASHER, 4X12 1
26 9390325220 SCREW, TAPPING, 5X12 2
27 94002060000S NUT, HEX., 6MM 1
28 9420120150 PIN, SPLIT, 2.0X15 1
29 9430520102 PIN, SPRING, 2X10 1
30 9501554000 PIN D, JOINT 1
31 960010601400 BOLT, FLANGE, 6X14 2
32 960010602500 BOLT, FLANGE, 6X25 2
