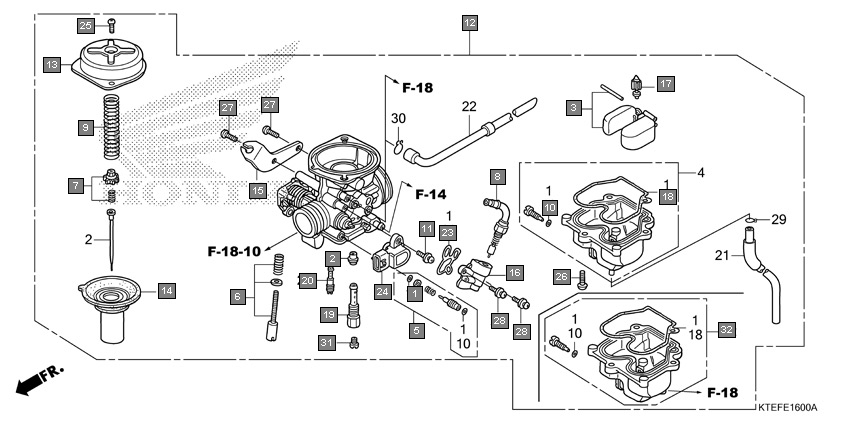

Motorcycles CB Shine CBF125L Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KTED01 NEEDLE SET, JET 1
3 16013KRC921 FLOAT SET 1
4 16016KTE911 SCREW SET A 1
5 16028KTE651 SCREW SET B 1
6 16037KPP861 PLATE SET, VALVE 1
7 16046KVC901 VALVE SET, STARTER 1
8 16050KTE911 SPRING, COMPRESSION COIL 1
9 16075KRP981 O-RING 2
10 16080KTN901 SCREW-WASHER, TORX(5X16) 1
11 16100KTED01 CARBURETOR ASSY.(3CK A) 1
12 16107KGF911 TOP 1
13 16111KTE911 PISTON COMP., VACUUM 1
14 16119KTE911 STAY, WIRE 1
15 16140KTE911 BODY COMP., BYSTARTER 1
16 16155KFR701 VALVE COMP., FLOAT 1
17 16163KRP981 GASKET, FLOAT CHAMBER 1
18 16165KTED01 HOLDER, NEEDLE JET 1
19 16180KGF911 JET, SLOW, #38 1
20 16423KGH901 GASKET, BYSTARTER 1
21 37890KTN901 SENSOR ASSY., THROTTLE 1
22 93500040081H SCREW, PAN, 4X8 2
23 93500040120H SCREW, PAN, 4X12 3
24 93500050121H SCREW, PAN, 5X12 2
25 938920501218 SCREW-WASHER, 5X12 2
26 99101KFG1050 JET, MAIN, #105 1
27 16015KTED01 CHAMBER SET, FLOAT 1
