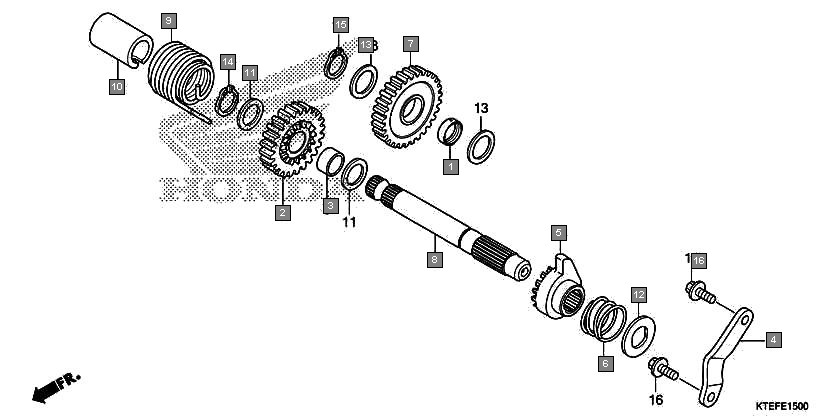

Motorcycles CB Shine CBF125L Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 23427KRM840 BUSH, 17X20.5X8.0 1
2 28211KTED00 PINION, KICK STARTER(24T) 1
3 28212KVS600 COLLAR, 18.5MM 1
4 28215KRM840 PLATE, KICK STOPPER 1
5 28221KTED00 RATCHET, STARTER 1
6 28223KRM840 SPRING, RATCHET 1
7 28231KTED00 GEAR, KICK STARTER IDLE(29T) 1
8 28251KWG600 SPINDLE, KICK STARTER 1
9 28261KRM840 SPRING, KICK RETURN 1
10 28282KRM840 COLLAR, KICK SPRING 1
11 90451KRM840 WASHER, THRUST, 16MM 2
12 90455KRM840 WASHER, SPECIAL, 14MM 1
13 90458KVS900 WASHER, THRUST, 17MM 2
14 9451016000 CIRCLIP, EXTERNAL, 16MM 1
15 90602KPT900 CIRCLIP, EXTERNAL, 16MM 1
16 90602KRM840 CIRCLIP, EXTERNAL, 17MM 1
17 957010601600 BOLT, FLANGE, 6X16 2
