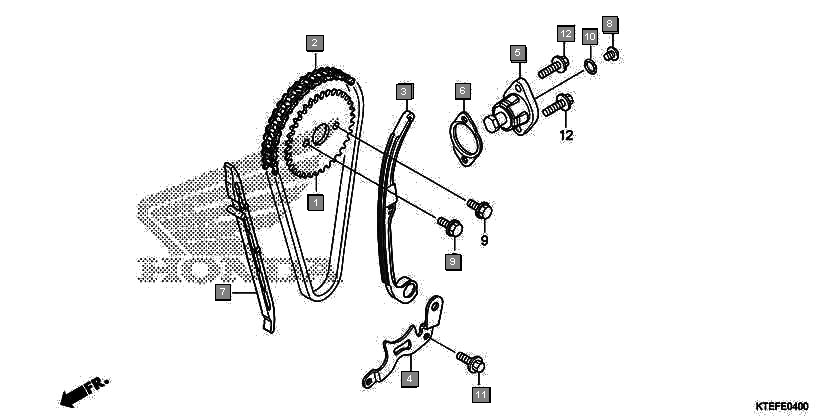

Motorcycles CB Shine CBF125L Engine Cam chain/tensioner
Ref.No. Part No. Description Oty
1 14321KTE910 SPROCKET, CAM(34T) 1
2 14401KTE910 CHAIN, CAM(94L) 1
3 14510KTE600 TENSIONER ASSY., CAM CHAIN 1
4 14515KTE600 PLATE, TENSIONER SETTING 1
5 14520KTED81 LIFTER ASSY., TENSIONER 1
6 14560KSP910 GASKET, TENSIONER LIFTER 1
7 14610KTE910 GUIDE, CAM CHAIN 1
8 90005K15900 SCREW, PAN, 6X6 1
9 90083KRM840 BOLT, KNOCK, 5MM 2
10 91306KRM840 O-RING, 1.5X9.5 1
11 957010601600 BOLT, FLANGE, 6X16 1
12 960010602200 BOLT, FLANGE, 6X22 2
