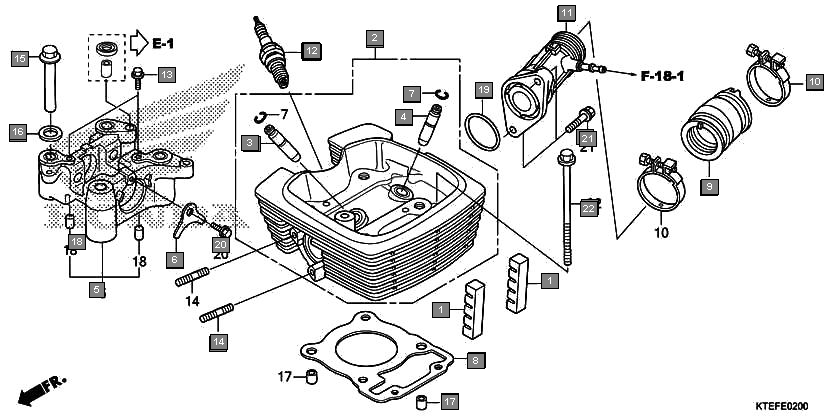

Motorcycles CB Shine CBF125L Engine Cylinder head
Ref.No. Part No. Description Oty
1 12195KTE910 RUBBER, INSERT 2
2 12200KTED00 HEAD COMP., CYLINDER 1
3 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
4 12210KTE910 HOLDER COMP., CAMSHAFT 1
5 12212KRM840 PLATE, STOPPER 1
6 12213KSP910 CLIP, VALVE GUIDE 2
7 12251KTE911 GASKET, CYLINDER HEAD (NIPPON LEAKLESS) 1
8 16210KTE910 INSULATOR, CARBURETOR 1
9 16217KTE910 BAND, INSULATOR 2
10 17110KTE910 PIPE COMP., INLET 1
11 31916KTE910 PLUG, SPARK(UR5DC) 1
12 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
13 31906KTE911 PLUG, SPARK(UR6DC) 1
14 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
15 90002KRM840 BOLT, FLANGE, 5X14 2
16 90035KRM840 BOLT, STUD, 8X22 2
17 90306KRM840 NUT, CYLINDER HEAD 4
18 90404KPTA00 WASHER, PLAIN, 12MM 4
19 90703KRM840 DOWEL PIN, 10X12 2
20 9430306100 DOWEL PIN, 6X10 2
21 91304KRM840 O-RING, 33.5X3.0 1
22 957010601400 BOLT, FLANGE, 6X14 1
23 957010602500 BOLT, FLANGE, 6X25 2
24 958010610500 BOLT, FLANGE, 6X105 2
