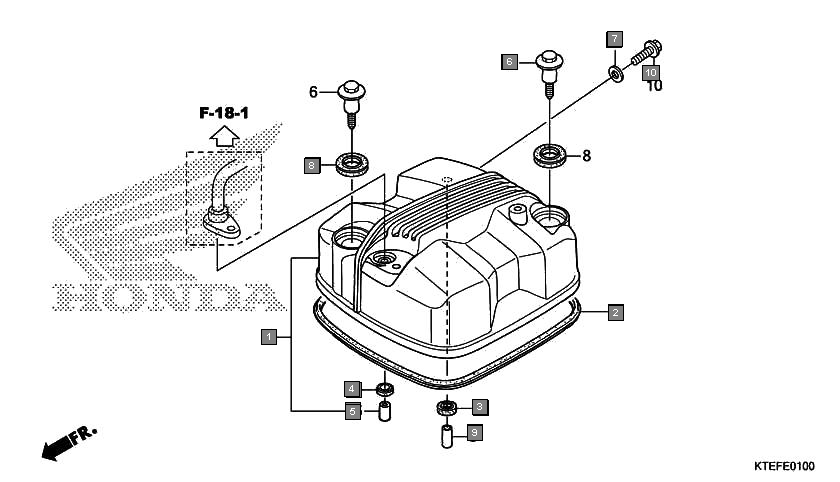

Motorcycles CB Shine CBF125L Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12310KTE600 COVER COMP., CYLINDER HEAD 1
2 12391KRM840 GASKET, HEAD COVER 1
3 12396KRM840 GASKET B, HEAD COVER 1
4 12397KWG601 GASKET C, HEAD COVER 1
5 12398KSPB00 COLLAR, 10MM 1
6 90003KFG000 BOLT, L. CRANKCASE COVER 2
7 90463KRM840 WASHER, SEALING, 6.2X12X1.2 1
8 90543MV9670 RUBBER, MOUNTING 2
9 90702KRM840 DOWEL PIN, 8X14 1
10 960010601200 BOLT, FLANGE, 6X12 1
