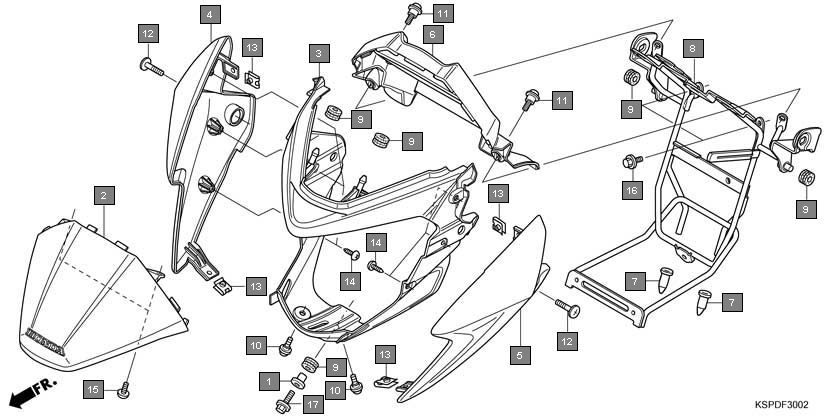

Motorcycles CB Unicorn Dazzler CBF150MB Frame Front cowl(cbf150mb/mc)
Ref.No. Part No. Description Oty
1 19052KV0000 COLLAR, RADIATOR MOUNTING 1
2 61300KSPB00ZA COVER SET A, METER(WL) *NH105* MAT BLACK(#15-#20) 1
3 61301KSPB00ZA COWL, FR. CENTER *NH105* MAT BLACK(#15-#20) 1
4 61302KSPB00ZA COWL, R. FR. SIDE *NHA84P* PEARL NIGHTSTAR BLACK 1
5 61302KSPB00ZC COWL, R. FR. SIDE *R320P* PEARL SIENA RED 1
6 61302KSPB00ZD COWL, R. FR. SIDE *Y207M* ARMOUR GOLD METALLIC 1
7 61302KSPB00ZB COWL, R. FR. SIDE *NHA95M* SWORD SILVER METALLIC 1
8 61303KSPB00ZA COWL, L. FR. SIDE *NHA84P* PEARL NIGHTSTAR BLACK 1
9 61303KSPB00ZC COWL, L. FR. SIDE *R320P* PEARL SIENA RED 1
10 61303KSPB00ZD COWL, L. FR. SIDE *Y207M* ARMOUR GOLD METALLIC 1
11 61303KSPB00ZB COWL, L. FR. SIDE *NHA95M* SWORD SILVER METALLIC 1
12 61305KSPB00ZA COVER B, METER *NH105* MAT BLACK(#15-#20) 1
13 61312KCT690 BOOT, HEADLIGHT STAY 2
14 61312KSPB00 STAY COMP., FR. COWL 1
15 83545KCJ690 RUBBER, SIDE COVER 5
16 90101GE0000 SCREW, HINGE PATCH 2
17 90102GB2720 SCREW, PAN, 5X16 2
18 90105KVN900 BOLT, SPECIAL, 6X22 2
19 90320GC3000 NUT, SPRING, 5MM 4
20 9390324380 SCREW, TAPPING, 4X12 6
21 9390325220 SCREW, TAPPING, 5X12 2
22 957010601200 BOLT, FLANGE, 6X12 2
23 957020601200 BOLT, FLANGE, 6X12 2
24 957010602007 BOLT, FLANGE, 6X20 1
25 957020602007 BOLT, FLANGE, 6X20 1
