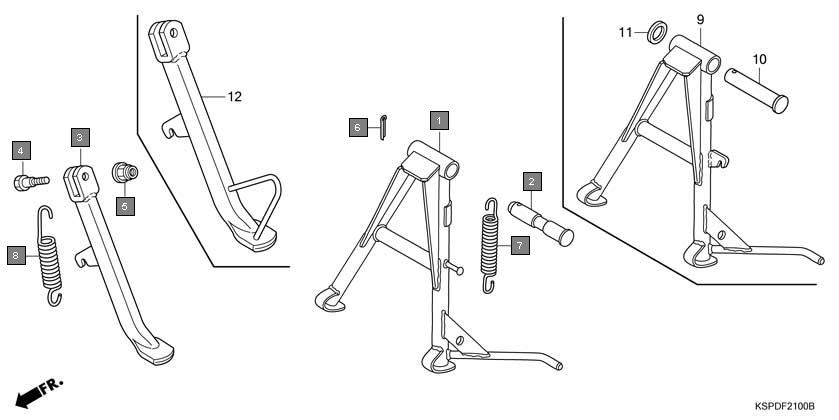

Motorcycles CB Unicorn Dazzler CBF150MB Frame Stand
Ref.No. Part No. Description Oty
1 90107GN1010 SCREW, SIDE STAND PIVOT 1
2 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
3 9420130300 PIN, SPLIT, 3.0X30 1
4 9501471702 SPRING G, MAIN STAND 1
5 9501472102 SPRING A, SIDE STAND 1
6 50500KSP870 STAND COMP., MAIN 1
7 50526KTE910 SHAFT, MAIN STAND PIVOT 1
8 90521028000 WASHER, 17X22 1
9 50530KSPB00 BAR COMP., SIDE STAND 1
