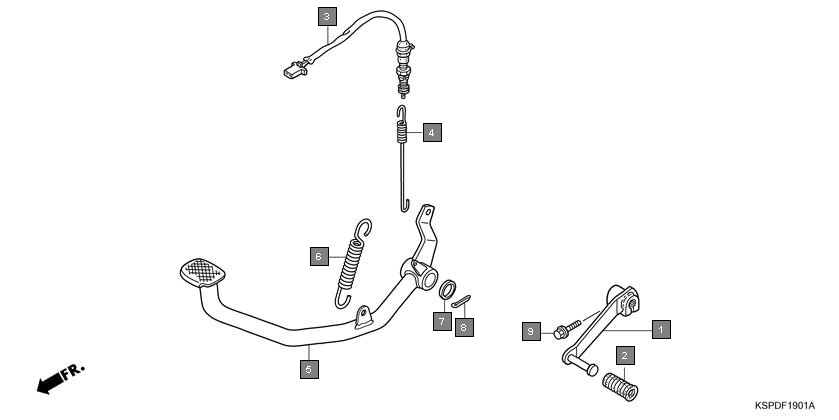

Motorcycles CB Unicorn Dazzler CBF150MB Frame Pedal(cbf150mb/mc)
Ref.No. Part No. Description Oty
1 24701KSPB10 PEDAL, GEAR CHANGE 1
2 24781KSP860 RUBBER, CHANGE PEDAL 1
3 35350KSPB01 SWITCH ASSY., RR. STOP 1
4 35357KSP900 SPRING, STOP SWITCH 1
5 46500KSPB00 PEDAL COMP., BRAKE 1
6 46514KN5670 SPRING, BRAKE PEDAL 1
7 90521028000 WASHER, 17X22 1
8 9420130300 PIN, SPLIT, 3.0X30 1
9 960010602000 BOLT, FLANGE, 6X20 1
