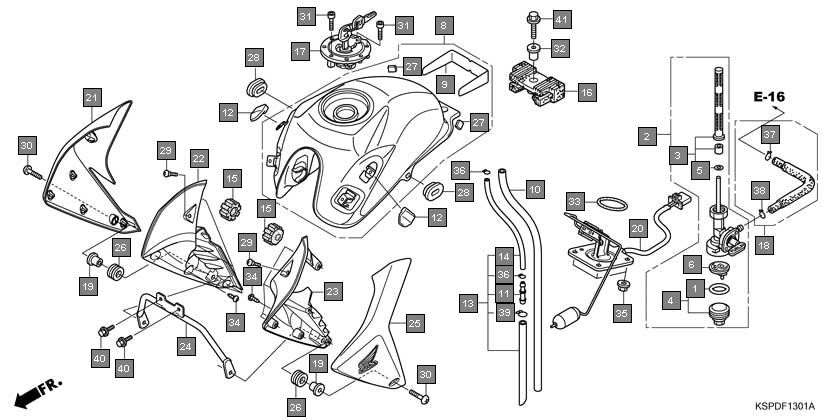

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16173001004 | PACKING, FUEL STRAINER CUP | 1 |
| 2 | 16950KSPB01 | COCK ASSY., FUEL | 1 |
| 3 | 16952KSPB00 | SCREEN SET, FUEL STRAINER | 1 |
| 4 | 16953GT4305 | CUP SET, FUEL STRAINER | 1 |
| 5 | 16958MA1731 | O-RING | 1 |
| 6 | 16959471831 | FILTER, CUP | 1 |
| 7 | 17500KSPB00ZA | TANK ASSY., FUEL *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
| 8 | 17500KSPB00ZC | TANK ASSY., FUEL *R320P* PEARL SIENA RED | 1 |
| 9 | 17500KSPB00ZD | TANK ASSY., FUEL *Y207M* ARMOUR GOLD METALLIC | 1 |
| 10 | 17500KSPB00ZB | TANK ASSY., FUEL *NHA95M* SWORD SILVER METALLIC | 1 |
| 11 | 17519KSPB00 | FILM, TANK PROTECTOR | 1 |
| 12 | 17525KSPB00 | TUBE, FUEL DRAIN | 1 |
| 13 | 17525KVE900 | JOINT, TUBE | 1 |
| 14 | 17529KVN900 | RUBBER, SHROUD MOUNTING | 2 |
| 15 | 17530KSPB00 | TUBE ASSY., BREATHER | 1 |
| 16 | 17531KSPB00 | TUBE, BREATHER | 1 |
| 17 | 17611KRY970 | CUSHION, FR. FUEL TANK | 2 |
| 18 | 17613KSPB00 | CUSHION, FUEL TANK RR. | 1 |
| 19 | 17620KSP861 | CAP COMP., FUEL FILLER | 1 |
| 20 | 17681KSPB00 | TUBE, FUEL | 1 |
| 21 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 2 |
| 22 | 37800KSPB01 | FUEL UNIT | 1 |
| 23 | 50200KSPB00ZA | SHROUD SET, R.(WL) *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
| 24 | 50200KSPB00ZC | SHROUD SET, R.(WL) *R320P* PEARL SIENA RED | 1 |
| 25 | 50200KSPB00ZD | SHROUD SET, R.(WL) *Y207M* ARMOUR GOLD METALLIC | 1 |
| 26 | 50200KSPB00ZB | SHROUD SET, R.(WL) *NHA95M* SWORD SILVER METALLIC | 1 |
| 27 | 50280KSPB00 | SHROUD, R. INNER | 1 |
| 28 | 50285KSPB00 | SHROUD, L. INNER | 1 |
| 29 | 50295KSPB00 | STAY COMP., SHROUD | 1 |
| 30 | 50300KSPB00ZA | SHROUD SET, L.(WL) *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
| 31 | 50300KSPB00ZC | SHROUD SET, L.(WL) *R320P* PEARL SIENA RED | 1 |
| 32 | 50300KSPB00ZD | SHROUD SET, L.(WL) *Y207M* ARMOUR GOLD METALLIC | 1 |
| 33 | 50300KSPB00ZB | SHROUD SET, L.(WL) *NHA95M* SWORD SILVER METALLIC | 1 |
| 34 | 83545KCJ690 | RUBBER, SIDE COVER | 2 |
| 35 | 83547KSPB00 | RUBBER, SIDE COVER | 2 |
| 36 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
| 37 | 90104KT2000 | SCREW, SPECIAL, 6X14 | 2 |
| 38 | 90105KVN900 | BOLT, SPECIAL, 6X22 | 2 |
| 39 | 90111KSP860 | BOLT, SOCKET, 4X21 | 3 |
| 40 | 90324KCJ660 | COLLAR, FUEL TANK MOUNTING | 1 |
| 41 | 91305443740 | O-RING, 39.5X5 | 1 |
| 42 | 9390324380 | SCREW, TAPPING, 4X12 | 10 |
| 43 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 44 | 9500202080 | CLIP, TUBE(B8) | 2 |
| 45 | 9500202100 | CLIP, TUBE(B10) | 1 |
| 46 | 9500202120 | CLIP, TUBE(B12) | 1 |
| 47 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 48 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
| 49 | 957020601207 | BOLT, FLANGE, 6X12 | 2 |
| 50 | 957010802508 | BOLT, FLANGE, 8X25 | 1 |
| 51 | 957020802508 | BOLT, FLANGE, 8X25 | 1 |
