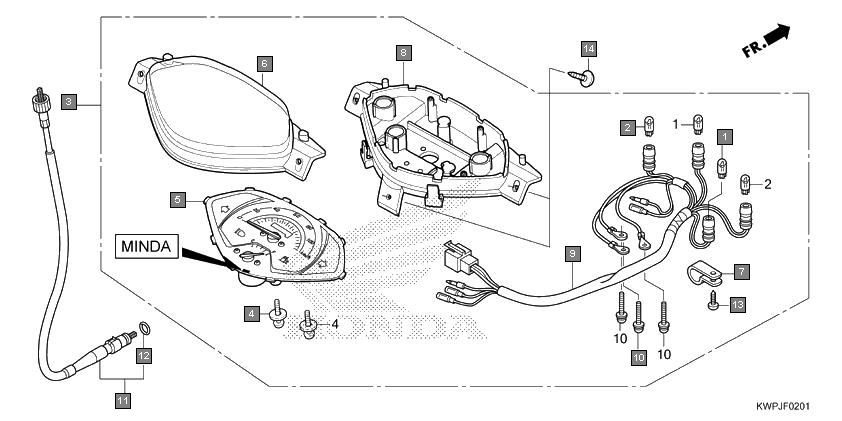

Scooters Activa SCV110L Frame Meter(minda)(scv110-2id,5id)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 2
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 37200KWPH11 SPEEDOMETER ASSY.(MINDA) 1
4 37205KWPD21 SCREW-WASHER, SPECIAL, 4X8 2
5 37210KWPH11 METER COMP., SPEED & FUEL (MINDA) 1
6 37211KWPH11 LENS 1
7 37215MB6831 CLAMP 1
8 37220KWPH11 CASE ASSY., UNDER 1
9 37224KWPH11 SOCKET COMP. 1
10 37305KWPD21 SCREW, 3X22 3
11 44830KWP902 CABLE COMP., SPEEDOMETER 1
12 91352671003 O-RING, 8.5X1.5(ARAI) 1
13 9390324420 SCREW, TAPPING, 4X16 1
14 9390325380 SCREW, TAPPING, 5X16 3
