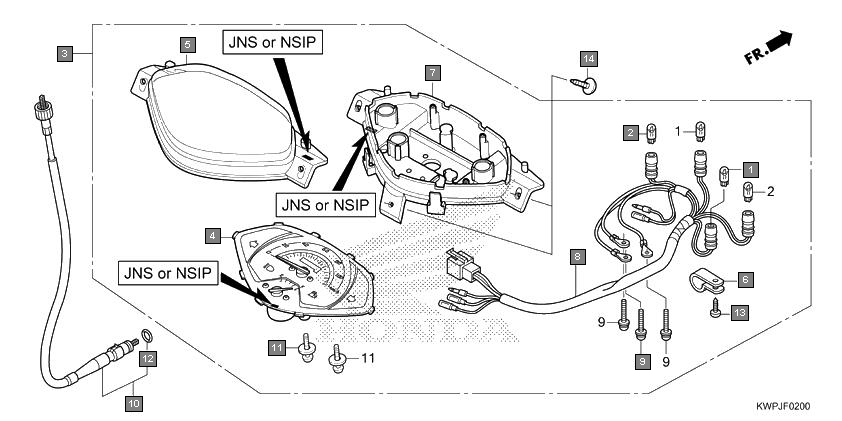

Scooters Activa SCV110L Frame Meter(nippon seiki)(scv110-2id,5id)
Ref.No. Part No. Description Oty
1 34908KVE900 BULB, WEDGE BASE(T10) (12V 1.7W)(TOSHIBA) 2
2 34909KVE900 BULB, WEDGE BASE(T10)(12V 3W) 2
3 37200KWPH01 SPEEDOMETER ASSY. (NIPPON SEIKI) 1
4 37210KWPH01 METER COMP., SPEED & FUEL (NIPPON SEIKI) 1
5 37211KWPH01 LENS 1
6 37215MB6831 CLAMP 1
7 37220KWPH01 CASE ASSY., LOWER 1
8 37224KWPH01 SOCKET COMP. 1
9 37305KE5008 SCREW-WASHER, 3X22 3
10 44830KWP902 CABLE COMP., SPEEDOMETER 1
11 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
12 91352671003 O-RING, 8.5X1.5(ARAI) 1
13 90109MZ5008 SCREW, TAPPING, 4X14 1
14 9390325380 SCREW, TAPPING, 5X16 3
