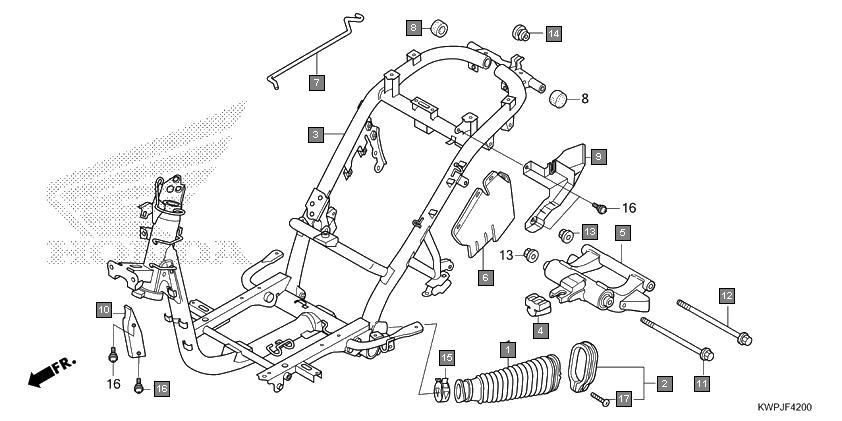

Scooters Activa SCV110L Frame Frame body
Ref.No. Part No. Description Oty
1 11345KWPG00 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100KWPH00 BODY COMP., FRAME 1
4 50352GW0730 RUBBER, LINK STOPPER 1
5 50355KVTG00 LINK SUB ASSY., ENGINE HANGER 1
6 80102KWP900 PLATE, FRAME BODY SPLASH GUARD 1
7 81256KWPD00 ROD, BODY OPENER 1
8 83561KPL840 CUSHION, BODY COVER 2
9 83640KWPH00 COVER, SEAT LOCK CABLE 1
10 83650KWPH00 COVER, SEAT LOCK CABLE(FR.) 1
11 90105KJ9000 BOLT, FLANGE, 10X210 1
12 90106GCC000 BOLT, FLANGE, 10X238 1
13 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
14 90862KWPG00 PLUG, END 1
15 91405KPL900 CLAMP, TUBE(D29) 1
16 91509GE2760 SCREW, PAN, 5X11.5 4
17 93500040250G SCREW, PAN, 4X25 1
