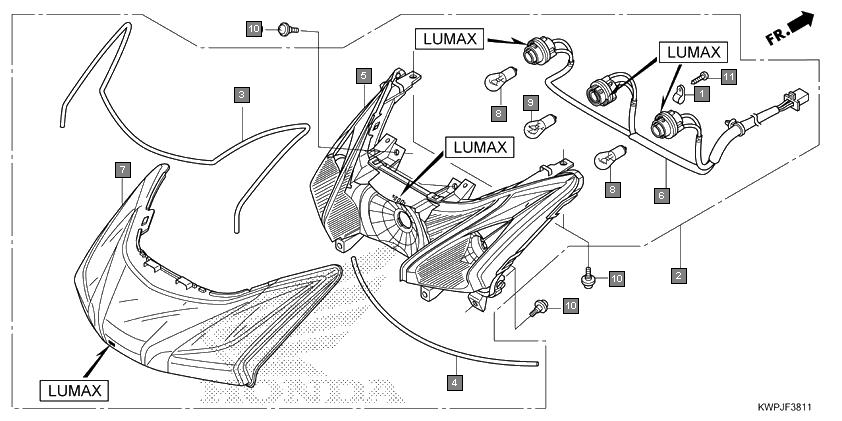

Scooters Activa SCV110L Frame Rear combination light(lumax)
Ref.No. Part No. Description Oty
1 32920KWPF02 CLIP A, HARNESS 1
2 33700KWPF02 LIGHT ASSY., RR. COMBINATION 1
3 33706KWPF02 PACKING A, SEAL 1
4 33707KWPF02 PACKING B, SEAL 1
5 33710KWPF02 TAILLIGHT UNIT(LUMAX) 1
6 33715KWPF02 SOCKET COMP.(LUMAX) 1
7 33720KWPF02 LENS COMP., TAILLIGHT(LUMAX) 1
8 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
9 34904KTE920 BULB, WINKER(AMBER)(12V 21W)(PY21W) 2
10 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
11 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
12 91509GE2760 SCREW, PAN, 5X11.5 6
13 9390134410 SCREW, TAPPING, 4X16 1
