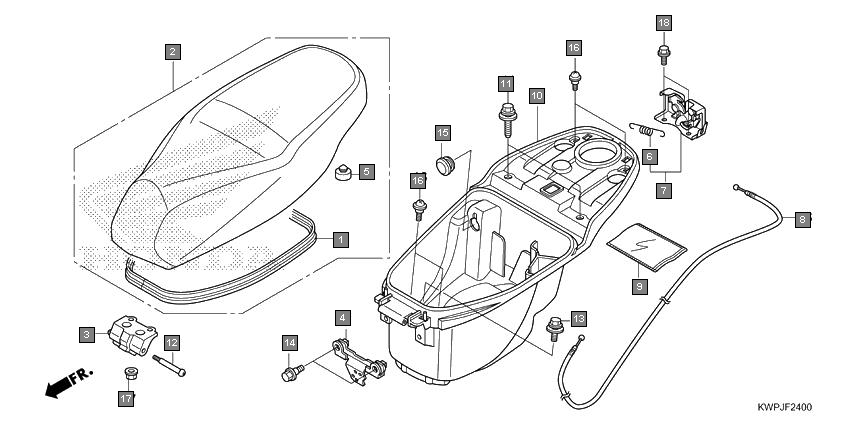

Scooters Activa SCV110L Frame Seat/luggage box
Ref.No. Part No. Description Oty
1 77115KWP900 RUBBER, SEAL 1
2 77200KWPG32ZA SEAT COMP., DOUBLE(VARROC) *TYPE1* 1
3 77200KWPG01ZA SEAT COMP., DOUBLE(TS TECH)*TYPE1* 1
4 77201KWPG30 HINGE, SEAT 1
5 77203KWPH00 STAY, HOOK LUGGAGE 1
6 77206KG8900 RUBBER, SEAT SETTING 2
7 77234K86D00 SPRING, SEAT LOCK 1
8 77235K86D00 CATCH COMP., SEAT 1
9 77240KWPH01 CABLE COMP., SEAT LOCK(HI-LEX) 1
10 77240KWPH12 CABLE COMP., SEAT LOCK(SEL) 1
11 77251KPL900 BAG, SERVICE BOOK 1
12 81250KWPG30 BOX, LUGGAGE 1
13 90101KWP900 BOLT-WASHER, 8X40 2
14 90105KTP900 PIN, HINGE 1
15 90107KWP900 BOLT-WASHER, 8X16 1
16 90112KRP900 BOLT, FLANGE, 6X18 2
17 90862KWPG00 PLUG, END 1
18 91509GE2760 SCREW, PAN, 5X11.5 4
19 9405006000 NUT, FLANGE, 6MM 2
20 957010601208 BOLT, FLANGE, 6X12 2
21 77200KWPH41ZA SEAT COMP., DOUBLE(TS TECH) *TYPE1* 1
22 77200KWPH52ZA SEAT COMP., DOUBLE(VARROC) *TYPE1* 1
