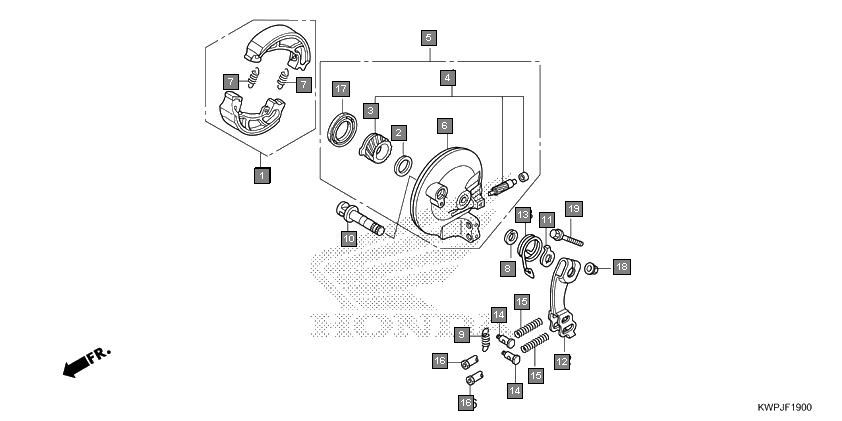

Scooters Activa SCV110L Frame Front brake panel
Ref.No. Part No. Description Oty
1 06430KWP900 SHOE SET, BRAKE(JB) 1
2 06430KWPD00 SHOE SET, BRAKE(ASK) 1
3 44809KPL900 WASHER, SPEEDOMETER GEAR 1
4 44811KPL900 GEAR, SPEEDOMETER 1
5 44820KWP900 GEAR SET, SPEEDOMETER 1
6 45010KZKE00ZA PANEL SUB COMP., FR. BRAKE *NH1* BLACK 1
7 45100KZKE10ZA PANEL COMP., FR. BRAKE *NH1* BLACK 1
8 45133KPL900 SPRING, FR.BRAKE SHOE (ASK)(FOR RR.) 2
9 45134250000 DUST SEAL, BRAKE CAM 1
10 45134KWPG30 SPRING, BRAKE ARM JOINT 1
11 45141KWPD00 CAM, FR. BRAKE (RR.) 1
12 45145KPL900 INDICATOR, FR. BRAKE 1
13 45410KWPE00 ARM COMP., FR. BRAKE 1
14 45435KPL900 SPRING, BRAKE ARM RETURN 1
15 45453KWPG30 JOINT, BRAKE ARM 2
16 45456KWP910 SPRING, BRAKE CABLE END 2
17 45459KWP911 NUT, BRAKE ADJUSTING 2
18 91253KPL900 DUST SEAL, 41X60X7 1
19 9405006000 NUT, FLANGE, 6MM 1
20 957010603500 BOLT, FLANGE, 6X35 1
21 957020603500 BOLT, FLANGE, 6X35 1
