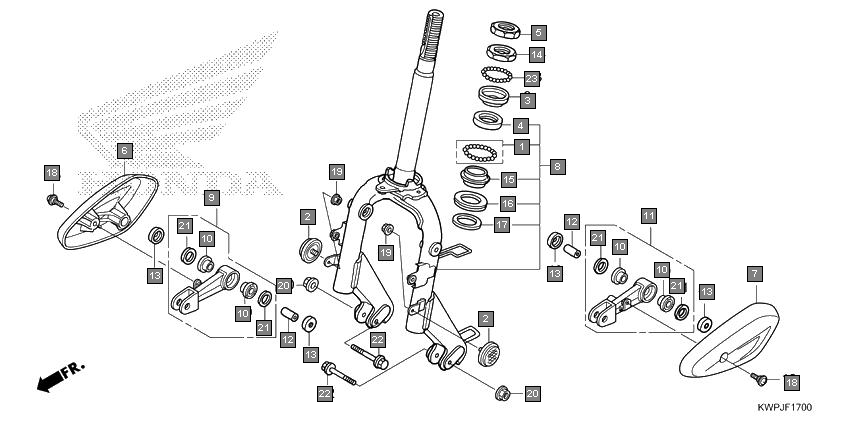

Scooters Activa SCV110L Frame Front fork
Ref.No. Part No. Description Oty
1 06531KEMP00 BALL SET, STEEL, #8X19 1
2 33740KTE601 REFLECTOR, FR. SIDE REFLEX 2
3 50301KEM900 RACE, STEERING UPPER BALL 1
4 50302268010 RACE, STEERING BOTTOM BALL 1
5 50306KPL900 NUT, STEERING STEM LOCK 1
6 51103KWP940 COVER, R. PIVOT 1
7 51104KWP940 COVER, L. PIVOT 1
8 51110KWPH00 FORK SUB ASSY., FR. 1
9 51215KZK900 ARM SET, R. PIVOT 1
10 51314KZK901 BUSH, PIVOT ARM 4
11 51315KZK900 ARM SET, L. PIVOT 1
12 51334KPL900 COLLAR, ARM PIVOT 2
13 51336KZK900 CAP, FR. FORK DISTANCE COLLAR 4
14 53211KEM900 RACE, STEERING TOP CONE 1
15 53212250010 RACE, STEERING BOTTOM CONE 1
16 53214250000 DUST SEAL, STEERING HEAD 1
17 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
18 90102KPL900 SCREW, FORK COVER 2
19 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 2
20 90309KTE911 NUT, FLANGE SPECIAL, 8MM 2
21 91251GZ5003 SEAL, PIVOT ARM 4
22 958010805508 BOLT, FLANGE, 8X55 2
23 9621105000 BALL, STEEL, #5(5/32) 26
